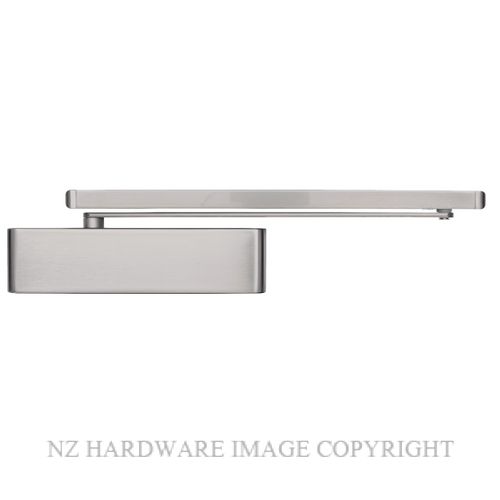

BRITON BT2720-BT2721 DELAY ACTION CAM ACTION CLOSERS

BRITON BT2720-BT2721 DELAY ACTION CAM ACTION CLOSERS

 BRITON  BT2720B T SS -  BT2721B T SS
CAM ACTION - DELAY ACTION DOOR CLOSERS (SATIN STAINLESS)

The Briton 2700 Series incorporates cam action technology to reduce the resistance encountered when opening fire or smoke barrier doors.
The reduced force required to open fire doors makes entering and exiting buildings much easier for all users – including the elderly, those with physical disabilities and small children.
In contrast to a conventional rack and pinion door closer, the linear cam action principle is extremely efficient.

The initial opening force decreases as the door opens, and the closer retains power and control to close the door
afterwards.
The Briton 2700 Series offers easy opening and reliable closing, while meeting accessibility standards.

PRODUCT FEATURES

Available in 2 mounting options

Pull side mount -BT2720BD T SS

Push side mount - BT2721BD T SS

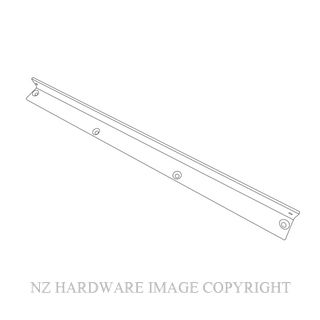

Note the push side mount includes to angle mounting bracket as standard

 Extruded aluminium body with cam action technology

• High quality hydraulic fluid with built-in temperature compensation (will operate effectively between -15 to +40 degrees Celcius)

• Separate closing speed and latch action adjustment

• Optional mechanical hold-open available:
80° - 120° angle
Click To View Briton 2700 Installation & Adjustment Video

Fire.pngSupplied With Fixings
Function.pngTrack Arm Cam Action Door Closer
Delay Action.pngDelay Action Closer The delayed action function means that the door does not immediately close once released. This gives a short space of time for persons, or trolleys to go through the door.
Function.pngNon Hold Open Door Closer

Maximum Interior Door Width - 1250mm
Maximum Exterior Door Width - 850mm
Door Weight - 40 - 100kg
Door Closer Strength - 1 to 5 Adjustable
Supplier No BNT-2720BD-T-SS
Supplier No BNT-2721BD-T-SS

Fire.pngFire Rated Check with your door supplier if these closers are approved for your doors

Finish - Satin Stainless

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

CLICK TO VIEW ALL STAINLESS STEEL PRODUCTS

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Application Function Product Options Product Features Finish Capacity Strength Fire Rated Price Quantity
BT2720BD T SS BNT-2720BD-T-SS BRITON BT2720BD T SS CAM ACTION DA CLOSER PULL SIDE STAINLESS
  • Unit:
    Each
  • Application:
    External Door,Internal Door
  • Function:
    Accessible Toilet Door,Apartment Entry Door,Boardroom Door,Corridor Door,Egress Door,Entry Door,Fire Door,Fire Escape Door,Lift Lobby,Office Door,Toilet Lobby,Warehouse Door,Smoke Control Door
  • Product Options:
    Track Arm
  • Product Features:
    Delay Action
  • Finish:
    Satin Stainless 304
  • Capacity:
    3 - High Usage
  • Strength:
    2 to 5
  • Fire Rated:
    Fire Rated
 Each External Door,Internal Door Accessible Toilet Door,Apartment Entry Door,Boardroom Door,Corridor Door,Egress Door,Entry Door,Fire Door,Fire Escape Door,Lift Lobby,Office Door,Toilet Lobby,Warehouse Door,Smoke Control Door Track Arm Delay Action Satin Stainless 304 3 - High Usage 2 to 5 Fire Rated
$942.48 (exc GST)
BT2721BD T SS BNT-2721BD-T-SS BRITON BT2721BD T SS CAM ACTION DA CLOSER PUSH SIDE STAINLESS
  • Unit:
    Each
  • Application:
    External Door,Internal Door
  • Function:
    Accessible Toilet Door,Apartment Entry Door,Boardroom Door,Corridor Door,Egress Door,Entry Door,Fire Door,Fire Escape Door,Lift Lobby,Office Door,Toilet Lobby,Warehouse Door,Smoke Control Door
  • Product Options:
    Track Arm
  • Product Features:
    Delay Action
  • Finish:
    Satin Stainless 304
  • Capacity:
    3 - High Usage
  • Strength:
    1 to 5
  • Fire Rated:
    Fire Rated
 Each External Door,Internal Door Accessible Toilet Door,Apartment Entry Door,Boardroom Door,Corridor Door,Egress Door,Entry Door,Fire Door,Fire Escape Door,Lift Lobby,Office Door,Toilet Lobby,Warehouse Door,Smoke Control Door Track Arm Delay Action Satin Stainless 304 3 - High Usage 1 to 5 Fire Rated
$942.48 (exc GST)
