BRIO WEATHERFOLD 4S 50KG 3 DOOR TRACK KIT

APPLICATION

For residential and commercial folding doors where weatherproofing of the opening is required.
This section covers Weatherfold 4s 50 hardware suitable for non mortice timber applications.
When extra corrosion resistance is required Weatherfold 4s is available with precision stainless steel bearings.

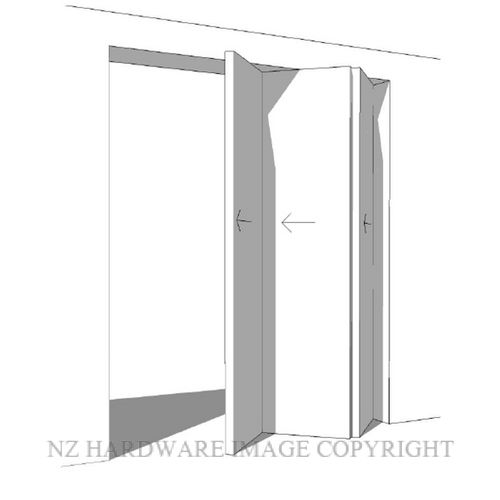

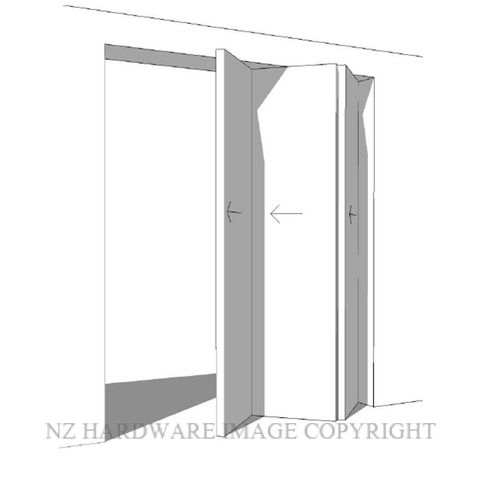

WEATHERFOLD 50KG 3 3 DOORS ONE WAY

PLEASE CONTACT US FOR A SPECIFICATION

WEATHERFOLD TRACK SPECIFICATIONS
MAX PANEL HEIGHT	3000mm
MAX PANEL WEIGHT	50kg
PANEL THICKNESS	35-68mm
MAXIMUM PANEL WIDTH	1000mm
FITS MAXIMUM OPENING WIDTH	3000mm

COMPONENTS INCLUDED IN KITSET	ITEM NUMBER	QUANTITY
BRIO 180 TOP TRACK ANODISED 3MTR	BI180-A30	1
BRIO 94PPA POLYPROPYLENE CHANNEL 3MTR	BI94PPA-A30	1
BRIO PIVOT SET NON MORTICED	BIBWS1-100HSS	1
BRIO INTERMEDIATE HANGER SET NON MORTICED	BIBWS4-50SHSS	1
OFFSET HINGE HANDLE SET NON MORTICED	BIBW7-100HSS	1
BRIO BI456RSN RADIUS FLUSH BOLTS	BI456RSN	2
BRIO TRACK SEAL BLACK PER METER	BIPS13 BL 1000	3
ADDITIONAL SEALS THAT MAY BE REQUIRED BUT NOT INCLUDED IN KITSET
FRAME SEAL	BIAQ21 BL 1000
DOOR SEAL	BIAQ48 BL 1000
DOOR SEAL	BIAQ63 BL 1000

Downloadable Files

Downloads

Code	Supplier Part Number	Image	Name	Unit	Application	Function	Door Type	Height	Door Thickness	Door Panel Width	Returns Policy	Privacy Policy	Price	Quantity
BI WF4S 50 3			BRIO WEATHERFOLD 4S 50KG 3 DOOR TRACK KIT Unit: Kitset Application: Commercial Use,Residential Use Function: Building Exterior Door Type: Timber Exterior Height: 3000mm Door Thickness: 35-68mm Door Panel Width: 1000mm Returns Policy: Non Returnable	Kitset	Commercial Use,Residential Use	Building Exterior	Timber Exterior	3000mm	35-68mm	1000mm	Non Returnable	Non Returnable	Retail: $1,828.75 (exc GST) Special: $1,627.59 (exc GST)	Quantity:
