RAVEN RP38SI DOOR BOTTOM SEAL

RAVEN RP38SI DOOR BOTTOM SEAL
  • RAVEN RP38SI DOOR BOTTOM SEAL
  • RAVEN RP38SI DOOR BOTTOM SEAL
Smoke.png Ambient (cold) Smoke
Smoke.png Medium Temp Smoke Proof
Sound.png Noise - Acoustic
Function.png Light Proof
Messure Volume.png Energy,Draught and Dust
Insect.png Insects and Vermin
Wheelchair.png Access and Mobility
Fire.png Fire (approved) New Zealand NZS 4520 and NZ Building Code Compliance Document C.

PRODUCT DESCRIPTION

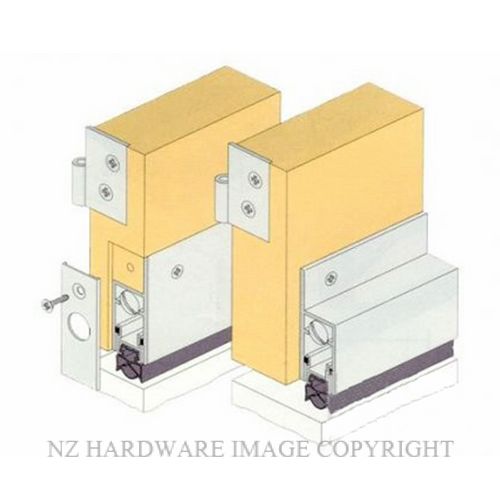

 A medium temperature smoke door bottom seal, with an extruded silicon sealing component. It is a heavy duty automatic door bottom seal which is spring loaded to lift clear off the floor as soon as the door leaf is opened by a few millimetres.

The seal is operated automatically by pressure against the doorjamb on the adjusting screw. It seals when the door closes and retracts automatically when the door is opened. It is self levelling.

RP38Si can be face mounted or semi-morticed in proprietary fire doors. It is adjustable for left and right handed operation.

STANDARD LENGTHS  MAXIMUM THE STANDARD LENGTH CAN BE CUT DOWN TO
1500MM  1220MM
1220MM 1070MM
1070MM 920MM
920MM 610MM
610MM 450MM
450MM 300MM

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Application Function Finish Overall Length Mounting Returns Policy Privacy Policy Price Quantity
RP38SI 450 CA A38SIC18 RAVEN RP38SI DOOR BOTTOM SEAL AUTO 450MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Cold Smoke,Medium Temp Smoke,Acoustic,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    .45 Metre
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Cold Smoke,Medium Temp Smoke,Acoustic,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Antimicrobial Door Bottom Seals Clear Anodised .45 Metre Screw Fix Non Returnable Item Non Returnable Item
$119.07 (exc GST)
Unavailable for Online Purchase, Contact Us
RP38SI 610 CA A38SIC24 RAVEN RP38SI DOOR BOTTOM SEAL AUTO 610MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Cold Smoke,Medium Temp Smoke,Acoustic,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    .61 Metre
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Cold Smoke,Medium Temp Smoke,Acoustic,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Antimicrobial Door Bottom Seals Clear Anodised .61 Metre Screw Fix Non Returnable Item Non Returnable Item
$147.08 (exc GST)
Unavailable for Online Purchase, Contact Us
RP38SI 920 CA A38SIC36 RAVEN RP38SI DOOR BOTTOM SEAL AUTO 920MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Cold Smoke,Medium Temp Smoke,Acoustic,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    .92 Metre
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Cold Smoke,Medium Temp Smoke,Acoustic,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Antimicrobial Door Bottom Seals Clear Anodised .92 Metre Screw Fix Non Returnable Item Non Returnable Item
$189.21 (exc GST)
Unavailable for Online Purchase, Contact Us
RP38SI 1070 CA A38SIC42 RAVEN RP38SI DOOR BOTTOM SEAL AUTO 1070MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Cold Smoke,Medium Temp Smoke,Acoustic,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    1.07 Metres
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Cold Smoke,Medium Temp Smoke,Acoustic,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Antimicrobial Door Bottom Seals Clear Anodised 1.07 Metres Screw Fix Non Returnable Item Non Returnable Item
$202.85 (exc GST)
Unavailable for Online Purchase, Contact Us
RP38SI 1220 CA A38SIC48 RAVEN RP38SI DOOR BOTTOM SEAL AUTO 1220MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Cold Smoke,Medium Temp Smoke,Acoustic,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    1.22 Metres
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Cold Smoke,Medium Temp Smoke,Acoustic,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Antimicrobial Door Bottom Seals Clear Anodised 1.22 Metres Screw Fix Non Returnable Item Non Returnable Item
$232.08 (exc GST)
Unavailable for Online Purchase, Contact Us
RP38SI 1500 CA A38SIC60 RAVEN RP38SI DOOR BOTTOM SEAL AUTO 1500MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Cold Smoke,Medium Temp Smoke,Acoustic,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    1.5 Metres
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Cold Smoke,Medium Temp Smoke,Acoustic,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Antimicrobial Door Bottom Seals Clear Anodised 1.5 Metres Screw Fix Non Returnable Item Non Returnable Item
$276.97 (exc GST)
Unavailable for Online Purchase, Contact Us
