LOCKWOOD 3772XVH HOLD BACK ENTRY ESCAPE LOCK WITH INT CYL 60MM SATIN STAINLESS

Benefits
• Easy red/green function setting
• All lock settings are made from under the faceplate allowing for simple in-door configuration
• Standard primary locks include anti-lockout and holdback capabilities
• Improved cylinder functions including lock/unlock and retract latch as standard
• Through-fixing of rose furniture turnknobs and escutcheons
• Reduced range of cylinder cams and turn adaptors relative to other commonly
available commercial cylinder mortice loc

Features and Specifications
The Australian designed and made Selector® 3770 Series Cylinder Mortice
Locks are made from quality materials to meet high durability and strength requirements.

Case and Faceplates
• High purity zinc alloy material cases with stainless steel chassis plates. Stainless steel faceplates provided as standard.

Latch Bolts
• Latch bolts are made with stainless steel,15mm in size
• Deadlatching is achieved by an auxiliary stainless steel latch bolt
• Reversible for both left and right hand doors,opening in or opening out whilst lock is
in door
• Electric Strike compatibility
• Separate auxiliary bolt moves into lock case simultaneously with latch bolt
• Radius bolt provides greater deadlatch throw and smoother closing action

Fire Rating
All Selector® 3770 Series Mortice Locks have been successfully tested up to 4 hours
(depending on type of doorset) on fire door assemblies in accordance with Australian
Standard AS 1905.1-2005, Part 1: Fire Resistant Doorsets.

If you require assistance with your selection please contact us either by email or phone.

Sets Come Complete With All Items Required For Standard Operation.
PLEASE NOTE THIS ITEM INCLUDES LOCK BODY & (CYLINDER IF  REQUIRED) ONLY DOES NOT INCLUDE HANDLES

Backset - 60mm Standard
Backsets Available - 60mm - 89mm - 127mm Price On Application
Door Thickness Standard - 32-50mm

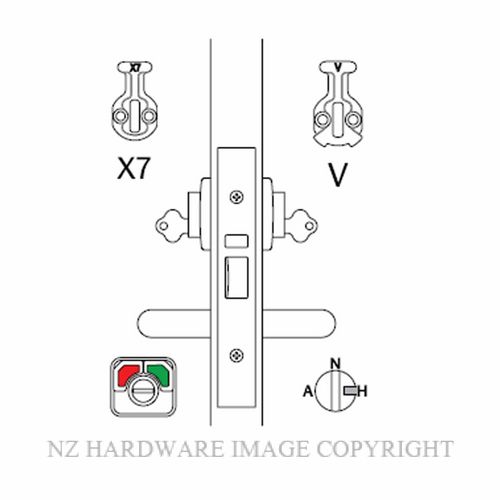

External Function - Opened by key at all times. Opened by handle when
unlocked. Key locks outside handle.
Internal Function - Opened by handle at all times. Key locks or unlocks outside handle and retracts bolt after unlocking lock.

Available Finishes - Antique Copper - Aged Brass - Architectural Unlacquered Bronze - Architectural Bronze - Chrome Plate - Matt Black - Oil Rubbed Bronze - Polished Brass

(ADD FINISH KIT AND CYLINDER TO SATIN STAINLESS LOCK)
