DORMAKABA RTS85 TRANSOM DOOR CLOSER (TIMBER KITS)

Dormakaba Concealed Overhead Transom Door Closer
(Timber Door Kits)

Ideal for shopfitting. For both double and single action doors. Elegant, versatile, practical and quality assured.
The RTS 85 offers a solution for installations where door control
must be provided without disturbing the aesthetic appearance of the door. The majority of preparation can be accomplished by the fabricator prior to installation, leaving minimal on-site work. A complete line of accessories is available to accommodate virtually any door and frame configuration.
(3 Strength) Suits Internal Doors up to 950mm
(4 Strength) Suits External Doors up to 1100mm
(5 Strength) Suits External Doors up to 1250mm

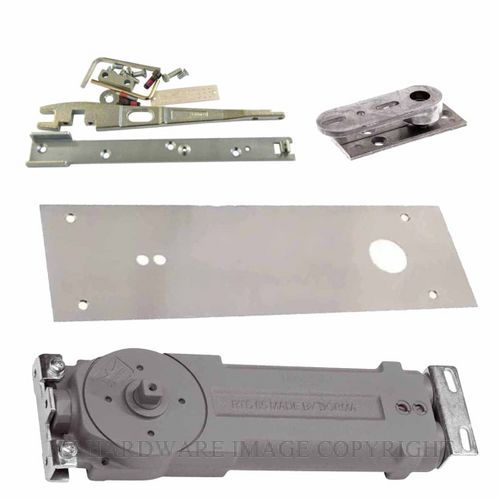

All Sets Include RTS85 Closer Body 8530 Arm Set & 8551 Pivot Set

Standard and optional functions
1 Fully controlled closing with adjustable speed
2 Adjustable final closing
3 Progressive mechanical backcheck
4 Mechanical backstop*
5 Hold-open points – depending on model (optional) 105° or 90°
* Door opening angle max. 130° on both sides; in the case of heavy doors which can be opened further, door stops must be used. In the case of single action doors, the opening angle may be reduced depending on the door design.

If you require assistance with your selection please contact us either by email or phone.

Fire.pngSupplied With Fixings
Minimum Door Thickness - 38mm

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Product Features Finish Door Type Door Thickness Strength Returns Policy Privacy Policy Price Quantity
DKRTS853T RTS853T DORMAKABA RTS853T 9400000003080 TIMBER NHO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Non Hold open
  • Finish:
    Silver Grey
  • Door Type:
    Timber Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    3
  • Returns Policy:
    20 Percent Surcharge
 Set Non Hold open Silver Grey Timber Doors 38mm Minimum 3 20 Percent Surcharge 20 Percent Surcharge
$752.36 (exc GST)
DKRTS853T90 RTS853T90 DORMAKABA RTS853T90 9400000003082 90DEG TIMBER HO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Hold Open 90 Deg
  • Finish:
    Silver Grey
  • Door Type:
    Timber Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    3
  • Returns Policy:
    20 Percent Surcharge
 Set Hold Open 90 Deg Silver Grey Timber Doors 38mm Minimum 3 20 Percent Surcharge 20 Percent Surcharge
$752.36 (exc GST)
DKRTS853T105 RTS853T105 DORMAKABA RTS853T105 9400000003081 105DEG TIMBER HO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Hold Open 105 Deg
  • Finish:
    Silver Grey
  • Door Type:
    Timber Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    3
  • Returns Policy:
    20 Percent Surcharge
 Set Hold Open 105 Deg Silver Grey Timber Doors 38mm Minimum 3 20 Percent Surcharge 20 Percent Surcharge
$752.36 (exc GST)
DKRTS854T RTS854T DORMAKABA RTS854T 9400000003088 TIMBER NHO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Non Hold open
  • Finish:
    Silver Grey
  • Door Type:
    Timber Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    4
  • Returns Policy:
    20 Percent Surcharge
 Set Non Hold open Silver Grey Timber Doors 38mm Minimum 4 20 Percent Surcharge 20 Percent Surcharge
$752.36 (exc GST)
DKRTS854T90 RTS854T90 DORMAKABA RTS854T90 9400000003090 90DEG TIMBER HO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Hold Open 90 Deg
  • Finish:
    Silver Grey
  • Door Type:
    Timber Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    4
  • Returns Policy:
    20 Percent Surcharge
 Set Hold Open 90 Deg Silver Grey Timber Doors 38mm Minimum 4 20 Percent Surcharge 20 Percent Surcharge
$752.36 (exc GST)
DKRTS854T105 RTS854T105 DORMAKABA RTS854T105 9400000003089 105DEG TIMBER HO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Hold Open 105 Deg
  • Finish:
    Silver Grey
  • Door Type:
    Timber Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    4
  • Returns Policy:
    20 Percent Surcharge
 Set Hold Open 105 Deg Silver Grey Timber Doors 38mm Minimum 4 20 Percent Surcharge 20 Percent Surcharge
$752.36 (exc GST)
DKRTS855T RTS855T DORMAKABA RTS855T 9400000003095 TIMBER NHO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Non Hold open
  • Finish:
    Silver Grey
  • Door Type:
    Timber Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    5
  • Returns Policy:
    20 Percent Surcharge
 Set Non Hold open Silver Grey Timber Doors 38mm Minimum 5 20 Percent Surcharge 20 Percent Surcharge
$752.36 (exc GST)
DKRTS855T90 RTS855T90 DORMAKABA RTS855T90 9400000003097 90DEG TIMBER HO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Hold Open 90 Deg
  • Finish:
    Silver Grey
  • Door Type:
    Timber Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    5
  • Returns Policy:
    20 Percent Surcharge
 Set Hold Open 90 Deg Silver Grey Timber Doors 38mm Minimum 5 20 Percent Surcharge 20 Percent Surcharge
$752.36 (exc GST)
DKRTS855T105 RTS855T105 DORMAKABA RTS855T105 9400000003096 105DEG TIMBER HO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Hold Open 105 Deg
  • Finish:
    Silver Grey
  • Door Type:
    Timber Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    5
  • Returns Policy:
    20 Percent Surcharge
 Set Hold Open 105 Deg Silver Grey Timber Doors 38mm Minimum 5 20 Percent Surcharge 20 Percent Surcharge
$752.36 (exc GST)
