DORMAKABA RTS85 TRANSOM CLOSER FIRE RATED DOOR KIT

DORMAKABA RTS85 TRANSOM DOOR CLOSER (FIRE DOOR KITS)

Dormakaba Concealed Overhead Transom Door Closer
(Fire Door Kits)

Ideal for shopfitting. For both double and single action doors. Elegant, versatile, practical and quality assured.
The RTS 85 offers a solution for installations where door control
must be provided without disturbing the aesthetic appearance of the door. The majority of preparation can be accomplished by the fabricator prior to installation, leaving minimal on-site work. A complete line of accessories is available to accommodate virtually any door and frame configuration.
(3 Strength) Suits Internal Doors up to 950mm
(4 Strength) Suits External Doors up to 1100mm
(5 Strength) Suits External Doors up to 1250mm

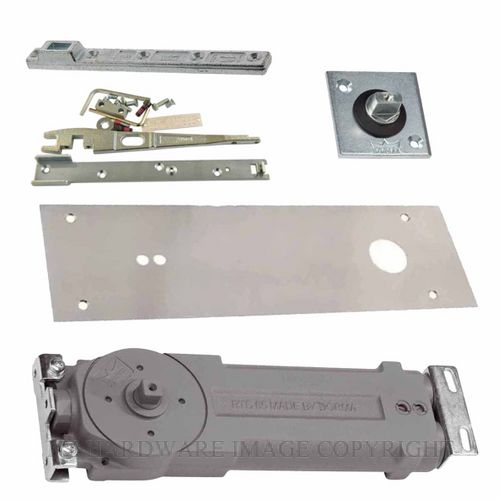

All Sets Include RTS85 Closer Body 8530 Arm Set & 8551 Pivot Set

Standard and optional functions
1 Fully controlled closing with adjustable speed
2 Adjustable final closing
3 Progressive mechanical backcheck
4 Mechanical backstop*
5 Hold-open points – depending on model (optional) 105° or 90°
* Door opening angle max. 130° on both sides; in the case of heavy doors which can be opened further, door stops must be used. In the case of single action doors, the opening angle may be reduced depending on the door design.

If you require assistance with your selection please contact us either by email or phone.

Supplied With Fixings

Minimum Door Thickness - 38mm

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Downloads

dormakaba rts85 techical brochure.pdf

Code	Supplier Part Number	Name	Unit	Product Features	Finish	Door Thickness	Strength	Fire Rated	Returns Policy	Privacy Policy	Price	Quantity
DKRTS853FSSS	RTS853F	DORMAKABA RTS853F EN3 FIRE RATED TRANSOM CLOSER Unit: Set Product Features: Non Hold open Finish: Silver Grey Door Thickness: 38mm Minimum Strength: 3 Fire Rated: Fire Rated Returns Policy: 20 Percent Surcharge	Set	Non Hold open	Silver Grey	38mm Minimum	3	Fire Rated	20 Percent Surcharge	20 Percent Surcharge	$1,116.16 (exc GST)	Quantity:
DKRTS854FSSS	RTS854F	DORMAKABA RTS854F EN4 FIRE RATED TRANSOM CLOSER Unit: Set Product Features: Non Hold open Finish: Silver Grey Door Thickness: 38mm Minimum Strength: 4 Fire Rated: Fire Rated Returns Policy: 20 Percent Surcharge	Set	Non Hold open	Silver Grey	38mm Minimum	4	Fire Rated	20 Percent Surcharge	20 Percent Surcharge	$1,116.16 (exc GST)	Quantity:
DKRTS855FSSS	RTS855F	DORMAKABA RTS855F EN5 FIRE RATED TRANSOM CLOSER Unit: Set Product Features: Non Hold open Finish: Silver Grey Door Thickness: 38mm Minimum Strength: 5 Fire Rated: Fire Rated Returns Policy: 20 Percent Surcharge	Set	Non Hold open	Silver Grey	38mm Minimum	5	Fire Rated	20 Percent Surcharge	20 Percent Surcharge	$1,116.16 (exc GST)	Quantity:
