DORMAKABA RTS85 TRANSOM CLOSER ALUMINIUM DOOR KIT

DORMAKABA RTS85 TRANSOM CLOSER ALUMINIUM DOOR KIT
  • DORMAKABA RTS85 TRANSOM CLOSER ALUMINIUM DOOR KIT
  • DORMAKABA RTS85 TRANSOM CLOSER ALUMINIUM DOOR KIT

 DORMAKABA RTS85 TRANSOM DOOR CLOSER (ALUMUNIUM KIT)

Dormakaba Concealed Overhead Transom Door Closer
(Aluminium Door Kits)

Ideal for shopfitting. For both double and single action doors. Elegant, versatile, practical and quality assured.
The RTS 85 offers a solution for installations where door control
must be provided without disturbing the aesthetic appearance of the door. The majority of preparation can be accomplished by the fabricator prior to installation, leaving minimal on-site work. A complete line of accessories is available to accommodate virtually any door and frame configuration.
(3 Strength) Suits Internal Doors up to 950mm
(4 Strength) Suits External Doors up to 1100mm
(5 Strength) Suits External Doors up to 1250mm

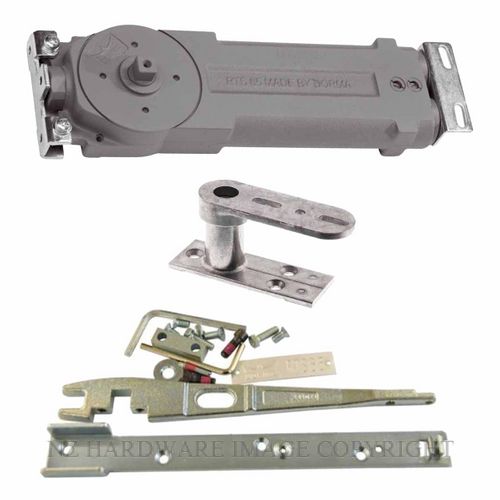

All Sets Include RTS85 Closer Body 8530 Arm Set & 8551 Pivot Set

Standard and optional functions
1 Fully controlled closing with adjustable speed
2 Adjustable final closing
3 Progressive mechanical backcheck
4 Mechanical backstop*
5 Hold-open points – depending on model (optional) 105° or 90°
* Door opening angle max. 130° on both sides; in the case of heavy doors which can be opened further, door stops must be used. In the case of single action doors, the opening angle may be reduced depending on the door design.

If you require assistance with your selection please contact us either by email or phone.

Fire.pngSupplied With Fixings
Minimum Door Thickness - 38mm

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Product Features Finish Door Type Door Thickness Strength Returns Policy Privacy Policy Price Quantity
DKRTS853A RTS853A DORMAKABA RTS853A 9400000003076 ALUM NHO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Non Hold open
  • Finish:
    Silver Grey
  • Door Type:
    Aluminium Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    3
  • Returns Policy:
    20 Percent Surcharge
 Set Non Hold open Silver Grey Aluminium Doors 38mm Minimum 3 20 Percent Surcharge 20 Percent Surcharge
$642.85 (exc GST)
DKRTS854A RTS854A DORMAKABA RTS854A 9400000003083 ALUM NHO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Non Hold open
  • Finish:
    Silver Grey
  • Door Type:
    Aluminium Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    4
  • Returns Policy:
    20 Percent Surcharge
 Set Non Hold open Silver Grey Aluminium Doors 38mm Minimum 4 20 Percent Surcharge 20 Percent Surcharge
$642.85 (exc GST)
DKRTS855A RTS855A DORMAKABA RTS855A 9400000003091 ALUM NHO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Non Hold open
  • Finish:
    Silver Grey
  • Door Type:
    Aluminium Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    5
  • Returns Policy:
    20 Percent Surcharge
 Set Non Hold open Silver Grey Aluminium Doors 38mm Minimum 5 20 Percent Surcharge 20 Percent Surcharge
$642.85 (exc GST)
DKRTS853A90 RTS853A90 DORMAKABA RTS853A90 9400000003078 90DEG ALUM HO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Hold Open 90 Deg
  • Finish:
    Silver Grey
  • Door Type:
    Aluminium Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    3
  • Returns Policy:
    20 Percent Surcharge
 Set Hold Open 90 Deg Silver Grey Aluminium Doors 38mm Minimum 3 20 Percent Surcharge 20 Percent Surcharge
$642.85 (exc GST)
DKRTS854A90 RTS854A90 DORMAKABA RTS854A90 9400000003085 90DEG ALUM HO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Hold Open 90 Deg
  • Finish:
    Silver Grey
  • Door Type:
    Aluminium Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    4
  • Returns Policy:
    20 Percent Surcharge
 Set Hold Open 90 Deg Silver Grey Aluminium Doors 38mm Minimum 4 20 Percent Surcharge 20 Percent Surcharge
$642.85 (exc GST)
DKRTS855A90 RTS855A90 DORMAKABA RTS855A90 9400000003093 90DEG ALUM HO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Hold Open 90 Deg
  • Finish:
    Silver Grey
  • Door Type:
    Aluminium Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    5
  • Returns Policy:
    20 Percent Surcharge
 Set Hold Open 90 Deg Silver Grey Aluminium Doors 38mm Minimum 5 20 Percent Surcharge 20 Percent Surcharge
$642.85 (exc GST)
DKRTS853A105 RTS853A105 DORMAKABA RTS853A105 9400000003077 105DEG ALUM HO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Hold Open 105 Deg
  • Finish:
    Silver Grey
  • Door Type:
    Aluminium Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    3
  • Returns Policy:
    20 Percent Surcharge
 Set Hold Open 105 Deg Silver Grey Aluminium Doors 38mm Minimum 3 20 Percent Surcharge 20 Percent Surcharge
$642.85 (exc GST)
DKRTS854A105 RTS854A105 DORMAKABA RTS854A105 9400000003084 105DEG ALUM HO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Hold Open 105 Deg
  • Finish:
    Silver Grey
  • Door Type:
    Aluminium Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    4
  • Returns Policy:
    20 Percent Surcharge
 Set Hold Open 105 Deg Silver Grey Aluminium Doors 38mm Minimum 4 20 Percent Surcharge 20 Percent Surcharge
$642.85 (exc GST)
DKRTS855A105 RTS855A105 DORMAKABA RTS855A105 9400000003092 105DEG ALUM HO TRANSOM CLOSER
  • Unit:
    Set
  • Product Features:
    Hold Open 105 Deg
  • Finish:
    Silver Grey
  • Door Type:
    Aluminium Doors
  • Door Thickness:
    38mm Minimum
  • Strength:
    5
  • Returns Policy:
    20 Percent Surcharge
 Set Hold Open 105 Deg Silver Grey Aluminium Doors 38mm Minimum 5 20 Percent Surcharge 20 Percent Surcharge
$642.85 (exc GST)
