DORMAKABA RTS85 TRANSOM CLOSER BODIES

DORMAKABA RTS85 TRANSOM DOOR CLOSER BODIES

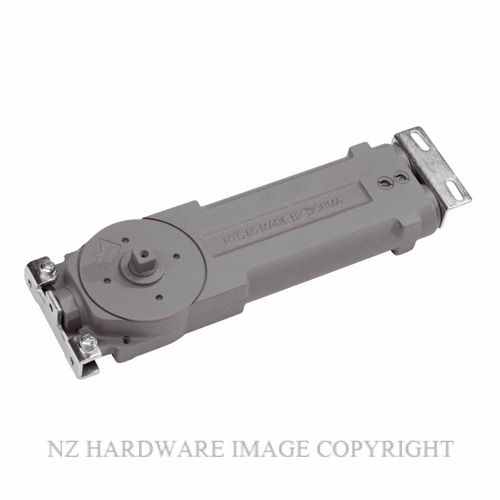

Dormakaba Concealed Overhead Transom Door Closer Bodies

Ideal for shopfitting. For both double and single action doors. Elegant, versatile, practical and quality assured.
The RTS 85 offers a solution for installations where door control
must be provided without disturbing the aesthetic appearance of the door. The majority of preparation can be accomplished by the fabricator prior to installation, leaving minimal on-site work. A complete line of accessories is available to accommodate virtually any door and frame configuration.
(3 Strength) Suits Internal Doors up to 950mm
(4 Strength) Suits External Doors up to 1100mm
(5 Strength) Suits External Doors up to 1250mm

Standard and optional functions
1 Fully controlled closing with adjustable speed
2 Adjustable final closing
3 Progressive mechanical backcheck
4 Mechanical backstop*
5 Hold-open points – depending on model (optional) 105° or 90°
* Door opening angle max. 130° on both sides; in the case of heavy doors which can be opened further, door stops must be used. In the case of single action doors, the opening angle may be reduced depending on the door design.

If you require assistance with your selection please contact us either by email or phone.

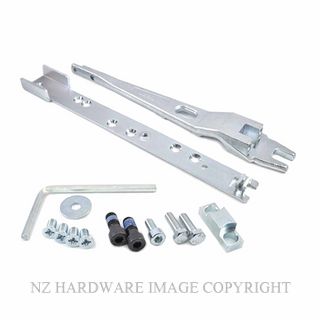

Supplied With Fixings

Minimum Door Thickness - 38mm

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Downloads

dormakaba rts85 techical brochure.pdf

Code	Supplier Part Number	Name	Unit	Product Features	Finish	Door Type	Door Thickness	Strength	Returns Policy	Privacy Policy	Price	Quantity
DKRTS85 EN3 NHO	RTS85 EN3 NHO	DORMAKABA RTS85 EN3 NHO 85311101 TRANSOM CLOSER BODY Unit: Each Product Features: Non Hold open Finish: Silver Grey Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 3 Returns Policy: 20 Percent Surcharge	Each	Non Hold open	Silver Grey	Aluminium Doors,Timber Doors	38mm Minimum	3	20 Percent Surcharge	20 Percent Surcharge	$478.34 (exc GST)	Quantity:
DKRTS85 EN3 105 HO	RTS85 EN3 105 HO	DORMAKABA RTS85 EN3 105 HO 85313101 TRANSOM CLOSER BODY Unit: Each Product Features: Hold Open 105 Deg Finish: Silver Grey Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 3 Returns Policy: 20 Percent Surcharge	Each	Hold Open 105 Deg	Silver Grey	Aluminium Doors,Timber Doors	38mm Minimum	3	20 Percent Surcharge	20 Percent Surcharge	$478.34 (exc GST)	Quantity:
DKRTS85 EN3 90 HO	RTS85 EN3 90 HO	DORMAKABA RTS85 EN3 90 HO 85312101 TRANSOM CLOSER BODY Unit: Each Product Features: Hold Open 90 Deg Finish: Silver Grey Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 3 Returns Policy: 20 Percent Surcharge	Each	Hold Open 90 Deg	Silver Grey	Aluminium Doors,Timber Doors	38mm Minimum	3	20 Percent Surcharge	20 Percent Surcharge	$478.34 (exc GST)	Quantity:
DKRTS85 EN4 NHO	RTS85 EN4 NHO	DORMAKABA RTS85 EN4 NHO 85321101 TRANSOM CLOSER BODY Unit: Each Product Features: Non Hold open Finish: Silver Grey Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 4 Returns Policy: 20 Percent Surcharge	Each	Non Hold open	Silver Grey	Aluminium Doors,Timber Doors	38mm Minimum	4	20 Percent Surcharge	20 Percent Surcharge	$478.34 (exc GST)	Quantity:
DKRTS85 EN4 105 HO	RTS85 EN4 105 HO	DORMAKABA RTS85 EN4 105 HO 85323101 TRANSOM CLOSER BODY Unit: Each Product Features: Hold Open 105 Deg Finish: Silver Grey Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 4 Returns Policy: 20 Percent Surcharge	Each	Hold Open 105 Deg	Silver Grey	Aluminium Doors,Timber Doors	38mm Minimum	4	20 Percent Surcharge	20 Percent Surcharge	$478.34 (exc GST)	Quantity:
DKRTS85 EN4 90 HO	RTS85 EN4 90 HO	DORMAKABA RTS85 EN4 90 HO 85322101 TRANSOM CLOSER BODY Unit: Each Product Features: Hold Open 90 Deg Finish: Silver Grey Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 4 Returns Policy: 20 Percent Surcharge	Each	Hold Open 90 Deg	Silver Grey	Aluminium Doors,Timber Doors	38mm Minimum	4	20 Percent Surcharge	20 Percent Surcharge	$478.34 (exc GST)	Quantity:
DKRTS85 EN5 NHO	RTS85 EN5 NHO	DORMAKABA RTS85 EN5 NHO 85331101 TRANSOM CLOSER BODY Unit: Each Product Features: Non Hold open Finish: Silver Grey Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 5 Returns Policy: 20 Percent Surcharge	Each	Non Hold open	Silver Grey	Aluminium Doors,Timber Doors	38mm Minimum	5	20 Percent Surcharge	20 Percent Surcharge	$478.34 (exc GST)	Quantity:
DKRTS85 EN5 105 HO	RTS85 EN5 105 HO	DORMAKABA RTS85 EN5 105 HO 85333101 TRANSOM CLOSER BODY Unit: Each Product Features: Hold Open 105 Deg Finish: Silver Grey Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 5 Returns Policy: 20 Percent Surcharge	Each	Hold Open 105 Deg	Silver Grey	Aluminium Doors,Timber Doors	38mm Minimum	5	20 Percent Surcharge	20 Percent Surcharge	$478.34 (exc GST)	Quantity:
DKRTS85 EN5 90 HO	RTS85 EN5 90 HO	DORMAKABA RTS85 EN5 90 HO 85332101 TRANSOM CLOSER BODY Unit: Each Product Features: Hold Open 90 Deg Finish: Silver Grey Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 5 Returns Policy: 20 Percent Surcharge	Each	Hold Open 90 Deg	Silver Grey	Aluminium Doors,Timber Doors	38mm Minimum	5	20 Percent Surcharge	20 Percent Surcharge	$478.34 (exc GST)	Quantity:
