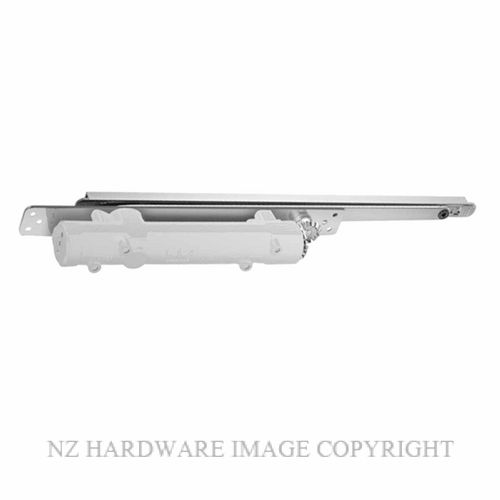

 DORMAKABA ITS96 CAM ACTION CONCEALED IN DOOR CLOSER (SILVER GREY)

Because of its compact design, the ITS 96 system can be concealed for virtual invisibility within the door and frame, integrating inconspicuously with the overall architectural ambience. Following the further development of the ITS 96 system to create the ITS 96 FL, the same advantages have now been Nm 80 60 40 20 function ensures exceptionally light door opening. DORMA cam-action door closers with EASY OPEN technology feature a heart-shaped cam that signifi cantly reduces the opening complemented with a free-swing function for fi re and smoke check doors up to a passage width of 1400 mm and a weight of 180 kg. This enhanced convenience also contributes to providing barrier-free access in a building. Offering proven EASY OPEN technology, the free-swing resistance that has to be overcome, almost as soon as the door is operated. Children, seniors and the physically disabled can thus open the door without undue effort. However, it is not only this group of users that benefi ts from the advantages of the rapidly decreasing opening force required – because this technology also generally ensures a signifi cant reduction in effort for maximum user friendliness.
Fire.pngSupplied With Fixings
Function.pngTrack Arm Cam Action Door Closer
Function.pngNon Hold Open Door Closer

Minimum Door Thickness - 40mm
Maximum Door Thickness - 3-6 Strength 50mm
Maximum Door Width DKITS 96 EN 2-4 COMPLETE UNIT- 1100mm
Maximum Door Width DKITS 96 EN 3-6 COMPLETE UNIT - 1400mm
Door Weight DKITS 96 EN 2-4 COMPLETE UNIT - 130kg
Door Weight DKITS 96 EN 3-6 COMPLETE UNIT - 180kg

Fire.pngFire Rated Check with your door supplier if these closers are approved for your doors

Finish - Silver Grey

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

CLICK TO VIEW ALL SATIN CHROME & SILVER PRODUCTS

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Function Finish Capacity Strength Fire Rated Returns Policy Privacy Policy Price Quantity
DKITS 96 EN 2-4 COMPLETE UNIT DKITS 96 EN 2-4 COMPLETE UNIT DORMAKABA ITS 96 EN 2-4 9400000002435 COMPLETE CLOSER STANDARD DOOR UP TO 1100MM SILVER
  • Unit:
    Set
  • Function:
    Fire Door,Office Door,Service Door,Storeroom Door,Toilet Lobby
  • Finish:
    Silver Grey
  • Capacity:
    3 - High Usage
  • Strength:
    2 to 4
  • Fire Rated:
    Fire Rated
  • Returns Policy:
    Non Returnable Item
 Set Fire Door,Office Door,Service Door,Storeroom Door,Toilet Lobby Silver Grey 3 - High Usage 2 to 4 Fire Rated Non Returnable Item Non Returnable Item
$871.54 (exc GST)
DKITS 96 EN 3-6 COMPLETE UNIT DKITS 96 EN 3-6 COMPLETE UNIT DORMAKABA ITS 96 EN 3-6 9400000002436 COMPLETE CLOSER STANDARD DOOR UP TO 1400MM SILVER
  • Unit:
    Set
  • Function:
    Fire Door,Office Door,Service Door,Storeroom Door,Toilet Lobby
  • Finish:
    Silver Grey
  • Capacity:
    3 - High Usage
  • Strength:
    3 to 6
  • Fire Rated:
    Fire Rated
  • Returns Policy:
    Non Returnable Item
 Set Fire Door,Office Door,Service Door,Storeroom Door,Toilet Lobby Silver Grey 3 - High Usage 3 to 6 Fire Rated Non Returnable Item Non Returnable Item
$979.34 (exc GST)
