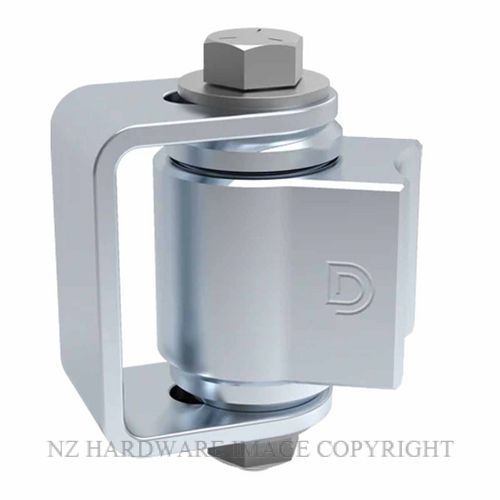

D&D Shut It® BadAss™ Heavy Duty hinge
The D&D SHUT IT® Heavy-Duty BadAss Hinge is one mighty dude! Designed for the rarest of installations where even The D&D SHUT IT® ORIGINAL is not BAD enough. For these situations, D&D SHUT IT® has designed the HD to hold 50 percent more load than the D&D SHUT IT® ORIGINAL. As with all our BadAss hinges, the HD is CNC machined to the industry’s tightest tolerances.
Unique Stover Locknut™
an innovative, shaped threads provide a vibration-resistant friction fit so nut stays firm. The top thread section is deformed to create two or three locking zones (can be re-used 2-3 times). The all-metal locknuts withstand higher temperatures than nylon-insert locknuts.
High Temperature Sealed Bearings
Safe to powder-coat with hinges installed on the gate (excluding CI3850 self-closing hinge and CI3800 Stainless Steel BadAss). No greasing, no maintenance; hinge options include 1, 2, 3 or 4 bearings and performs better than roller cages that require periodic greasing.
Features - Three sealed maintenance free bearings
- High temp[ bearings sfe to powdercoat
- Adjustable bracket for perfect installations
- Ideal for square or round-post installations
- Holds 50% more load than the Original
- Load rating per gate:1,360kg (3,000 lbs)
- Maximum gate weight: 680kg (1,500 lbs)
- Steel bracket and body
- Hinge weight 1.6kg
- Supplied in trade pack - 1 each
Specifications - Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
- Gate Type: Non Self-Closing
- Gate Material: Steel or Ornamental Iron
- Approximate Gate Width 2000mm
- Approximate Gate Height 3000mm
- Gate Frame/Post Shape: Square-to-Square, Square-to-Round
- Minimum Post Size: 38mm+
- Ideal Gate Gap: 61mm to 74mm
- Fixing Method: Weld-On
If you require assistance with your selection please contact us either by email or phone. |
