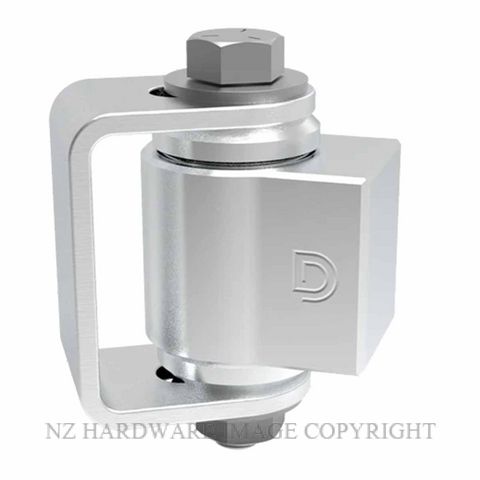

D&D Shut It® BadAss™ Aluminium Hinge Like The D&D SHUT IT® ORIGINAL BadAss, The D&D SHUT IT® Aluminium BadAss Gate Hinge is CNC machined to the tightest tolerances in the industry. Due to the D&D SHUT IT® unique bushing design the D&D SHUT IT® Aluminium BadAss, like all other D&D SHUT IT® gate hinges, produces near frictionless movement with maintenance free usage.
Unique Stover Locknut™
an innovative, shaped threads provide a vibration-resistant friction fit so nut stays firm. The top thread section is deformed to create two or three locking zones (can be re-used 2-3 times). The all-metal locknuts withstand higher temperatures than nylon-insert locknuts.
High Temperature Sealed Bearings
Safe to powder-coat with hinges installed on the gate (excluding CI3850 self-closing hinge and CI3800 Stainless Steel BadAss). No greasing, no maintenance; hinge options include 1, 2, 3 or 4 bearings and performs better than roller cages that require periodic greasing.
Features- Two sealed maintenance free bearings
- Adjustable bracket for precise installations
- Perfect for that high-end installation
- Ideal for flat post installation
- Load rating per gate: 450kg (1,000 lbs)
- Maximum gate weight: 270kg (600 lbs)
- Aluminium bracket and body
- Hinge weight 1kg
Specification
- Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
- Gate Type: Non Self-Closing
- Gate Material: Aluminium
- Approximate Gate Width 2000mm
- Approximate Gate Height 3000mm
- Gate Frame/Post Shape: Round or plate post installations
- Min Post Size: 38mm+
- Ideal Gate Gap: 64mm to 76mm
- Fixing Method: Weld-On
If you require assistance with your selection please contact us either by email or phone. |
