D&D Shut It® BadAss™ Original Hinge

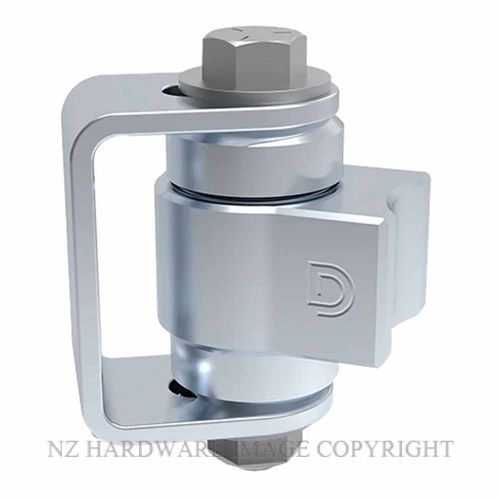

The D&D SHUTIT® Original BadAss gate hinge is CNC machined to the tightest tolerances in the industry. Due to the D&D SHUTIT® Original BadAss unique bushing design, like all other D&D SHUTIT® gate hinges, produces near frictionless movement with maintenance free usage. Available in Steel or Rusted Finish.
Unique Stover Locknut™
an innovative, shaped threads provide a vibration-resistant friction fit so nut stays firm. The top thread section is deformed to create two or three locking zones (can be re-used 2-3 times). The all-metal locknuts withstand higher temperatures than nylon-insert locknuts.
High Temperature Sealed Bearings
Safe to powder-coat with hinges installed on the gate (excluding CI3850 self-closing hinge and CI3800 Stainless Steel BadAss). No greasing, no maintenance; hinge options include 1, 2, 3 or 4 bearings and performs better than roller cages that require periodic greasing.
Features - Adjustable bracket for precise installations
- Two sealed maintenance-free bearings
- Ideal for flat and round post installations
- Load rating per gate: 900kg (2,000 lbs)
- Maximum gate weight: 500kg (1,100 lbs )
- Steel bracket and body
Specifications - Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
- Gate Type: Non Self-Closing
- Gate Material: Aluminium, Steel or Ornamental Iron
- Approximate Gate Width 2000mm
- Approximate Gate Width 3000mm
- Gate Frame/Post Shape: Square-to-Square
- Minimum Post Size: 38mm+
- Ideal Gate Gap: 61mm to 74mm
- Fixing Method: Weld-On
If you require assistance with your selection please contact us either by email or phone. |  | Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate,Automated/Electric Gate, Security Gate, Privacy Gate
Gate Type - Non Self Closing
Gate Material: Aluminium, Steel or Ornamental Iron
Overall Height - 97mm |  | Available Finish - Zinc FOR RELATED PRODUCTS REFER BOTTOM OF PAGE |
|
