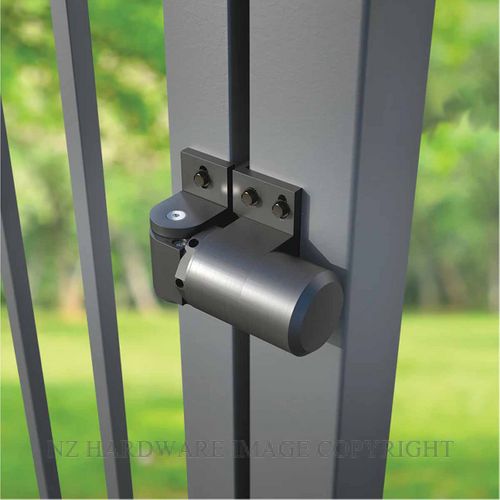

D&D SURECLOSE® READYFIT 108 WITH SAFETY FEATURE
An externally mounted, hydraulic self-closing hinge-closer
The hydraulic D&D SureClose® Gate Closers and Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint D&D SureClose® gate closers and hinges.
Each D&D SureClose® ReadyFit model lives up to its name by providing convenient screw slots and holes for sturdy fixing. 25mmx12g self-drilling Tek screws are supplied. The slots allow fine vertical adjustment for speedy gate alignment. Horizontal adjustment is attained by way of a built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall alignment is achieved. It’s remarkably simple for a commercial-style gate closer product. All SureClose® Hinges and Closers are made of high-grade aluminium.
Optional, L-shaped steel mounting brackets can either be welded or fastened to appropriate gate frames and posts (not included).
Features - Safety hinge and closer
- Controlled quiet close
- External mounted
- Gap variance of 12mm to 35mm
- Self-closes gates up to 120kg (260lb) – See Chart
- Multiple mounting options, includes fasteners
- Final Snap Close Action
- Maximum opening angle 88º
- Self closing from 88°
- Alignment legs give double face-fixing strength
- Emergency Override feature for safety and longevity
- Minimum fence post size 50mm
- Must install a gate-stop to prevent the gate opening more than 90º
If you require assistance with your selection please contact us either by email or phone. |
