BRIO SINGLE RUN 120 EXTERIOR TRACK

BRIO SINGLE RUN 120 EXTERIOR TRACK

BRIO 120KG EXTERIOR TOP HUNG STRAIGHT SLIDING DOOR TRACK (120KG)

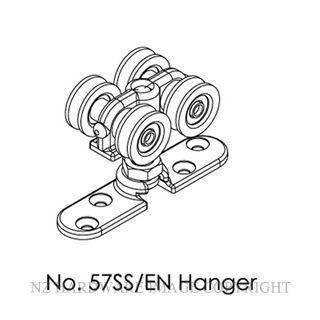

  • The Brio Single Run 120 system is designed for interior and exterior sliding shutters and doors up to 120kg in residential or light commercial applications. It uses our proven 4-wheel reinforced nylon outer tyre hanger technology with either chrome or stainless steel highspeed precision bearings for those more exposed applications. The 120 series cast stainless steel hangers make it a durable solution for high traffic applications with impressive corrosion resistance. There are seven dedicated hangers to suit a wide range of applications and door construction such as timber aluminium and MDF. Each hanger has been designed for simple installation and ease of adjustment.

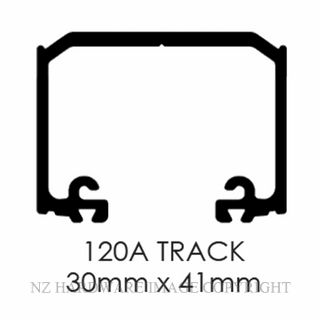

    The 120 track can be soffit-fixed through the track, or side-fixed using Brio® stainless steel face-fixed mounting brackets for single or double track runs. Our new 120R track is suitable for internal application for easy integration with ceiling tiles. 120R is only available in 15 micron clear anodised aluminium but our 120 track is available in mill and 25 micron clear anodised for improved corrosion performance. The system is suitable for a single panel slid to one side or two panels bi-parting in a single run of track. A comprehensive range of bottom channels and guides are available to suit a wide range of applications.

    BISR120-20-1

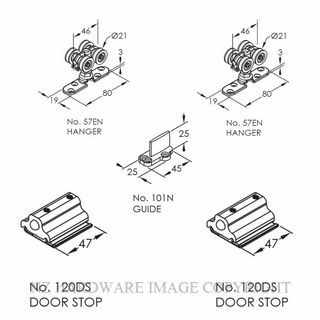

    Kit suitable for one door kit comprises: 2m length of aluminium track two standard door hangers two track mounted door stops one sawcut guide and installation instructions.

    BISR120-30-1
    Kit suitable for one door kit comprises: 3m length of aluminium track two standard door hangers two track mounted door stops one sawcut guide and installation instructions.

Maximum Leaf Weights - 120kg
Minimum Door Thickness - 19mm
Maximum Panel Height - 3000mm

Manufactured of Stainless Steel


FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Application Function Door Type Height Door Thickness Price Quantity
BISR120-20-1 SFHSR120SS-20/1 BRIO SR120-20/1 SINGLE RUN 120 FITTING PACK & 2000MM TRACK
  • Unit:
    Len
  • Application:
    Commercial Use
  • Function:
    Building Exterior
  • Door Type:
    Timber Exterior,Aluminium Exterior
  • Height:
    3000mm
  • Door Thickness:
    19mm Minimum
 Len Commercial Use Building Exterior Timber Exterior,Aluminium Exterior 3000mm 19mm Minimum
Retail: $546.98 (exc GST)
Special: $486.81 (exc GST)
BISR120-30-1 SFHSR120SS-30/1 BRIO SR120-30/1 SINGLE RUN 120 FITTING PACK & 3000MM TRACK
  • Unit:
    Len
  • Application:
    Commercial Use
  • Function:
    Building Exterior
  • Door Type:
    Timber Exterior,Aluminium Exterior
  • Height:
    3000mm
  • Door Thickness:
    19mm Minimum
 Len Commercial Use Building Exterior Timber Exterior,Aluminium Exterior 3000mm 19mm Minimum
Retail: $614.30 (exc GST)
Special: $546.72 (exc GST)
