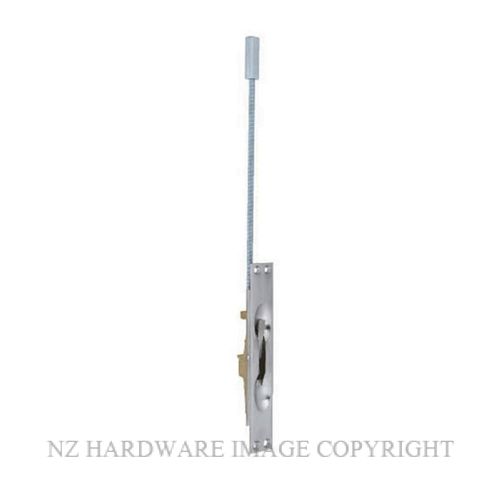

IVES FB458 GJH22018 FLUSH BOLT SATIN CHROME

IVES FB458 GJH22018 FLUSH BOLT SATIN CHROME
  • IVES FB458 GJH22018 FLUSH BOLT SATIN CHROME
  • IVES FB458 GJH22018 FLUSH BOLT SATIN CHROME
Fixings.pngSupplied With Timber Fixings
 warranty-1.png10 Year Warranty

IVES FB458 FLUSH BOLT METAL FIX

SPECIFICATIONS

DOOR TYPEAluminium or hollow metal - Top or Bottom
OPERATIONSimplified installation in metal frames. Round bolt head requires only a punched hole. Use of strike optional. Special design of guide and flat sided bolt tip to prevent bolt rotation
BOLTSBolt tip is 12.7mm diameter, bolts have 19mm throw with a bolt backset of 19mm
STANDARD RODLength is 300mm, measured from the centre of the flush bolt body to the bolt tip
EXTENSION RODA 457mm extension rod is available for high doors
DIMENSIONSBody size; 25mm W x 172mm L x 29mm D
HANDINGNon-handed
FINISHSatin Chrome Plate
OPTIONALDust proof strike DP2 prevents dirt build-up assuring full engagement of bolt
PRODUCT DESCRIPTION
Ives flush bolts have been designed with manual and automatic functions for timber and metal doors. The series includes a comprehensive range of models to cover most installation requirements. Selected for rigidity and strength, flush bolts are suited to meet commercial demands.
PRODUCT FEATURES
    • Manufactured from heavy duty steel plate and cast brass
    • Steel components are dichromate plated for corrosion resistance
    • 19mm bolt throw for positive locking
    • Fully automatic retraction of auto bolt
    • Low actuation forces in auto locking functions
    • Top auto flush bolts supplied with strike plate
    • The 10 year warranty provides specifiers and users with assured quality and performance

FOR RELATED PRODUCTS REFER BELOW

CLICK TO VIEW ALL SATIN CHROME & SILVER PRODUCTS





Code Supplier Part Number Image Name Unit Function Finish Overall Length Width Returns Policy Privacy Policy Price Quantity
IVES FB458 SC GJH22018 IVES FB458 GJH22018 FLUSH BOLT SATIN CHROME
  • Unit:
    Each
  • Function:
    Flush Bolts Non Locking
  • Finish:
    Satin Chrome
  • Overall Length:
    172mm
  • Width:
    25mm
  • Returns Policy:
    20 Percent Surcharge
Each Flush Bolts Non Locking Satin Chrome 172mm 25mm 20 Percent Surcharge 20 Percent Surcharge
$66.07 (exc GST)
