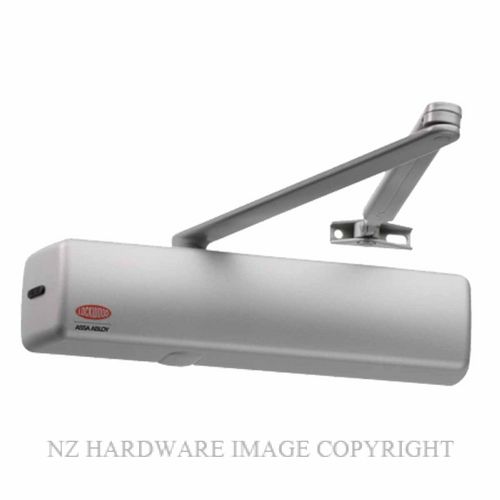

Lockwood 2657 Surface Mounted Door Closer
Designed and manufactured to exacting standards. These world recognised standards ensure the highest possible quality, efficiency and reliable performance. All models (except hold-open) are tested and approved on fire doors in accordance with Australian Standard AS1905:1:2005 Fire Resistant Doorsets. New multi functional designs offer the specifier, stockist or the installer outstanding versatility and low inventory levels. Effective door installation requires that the door and frame be of sufficient strength or reinforced to ensure secure anchorage of the door closer unit. A door fitted with a door closer must be hung on good quality, aligned hinges so it swings freely without bias in both directions. The closed door must be clear in the door frame and when a lock is fitted the latch bolt must engage freely within the strike. When specifying manually operated door closers the following should be considered: door size, in particular width of door; door weight; type of installation; environmental conditions; location of door; operation frequency of door; the people using the door. Door size and the pressure exerted on the surface area of the door due to wind gusts or air conditioning and the spring strength required to hold or close the door against this pressure must be considered along with the ability of the user to exert the force necessary to push or pull the door open. The location of door furniture will influence the leverage available to the person opening the door.
The Lockwood 2657 Heavy Duty Door Closer Series is suitable for use on internal and external doors and is an ideal solution for extremely heavy doors, operating on a maximum door weight of 160kg and door leaf width of 1600mm with standard arm installation.
Features - Non-handed. Suitable for left or right hand doors
- Fully formed metal cover
- Die-cast aluminium body manufactured from high performance silicon alloy
- Rack and pinion design
- Regular and over-door mounting
- Separate adjusting valves for closing and latching speed
- Two pressure relief valves to protect against abuse
- Operating temperature range -35°C to +45°C
If you require assistance with your selection please contact us either by email or phone. |
