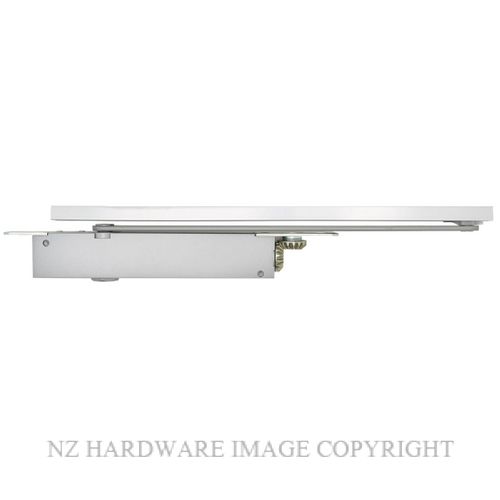

BRITON BT2420 T SG CONCEALED CAM ACTION CLOSER SILVER GREY

BRITON BT2420 T SG CONCEALED CAM ACTION CLOSER SILVER GREY

 BRITON  BT2420 T SG
CAM ACTION CONCEALED IN DOOR CLOSER (SILVER GREY)

The Briton 2400 Series is a precision manufactured cam-action, slide channel door closer in a compact concealed unit.
With the closer body mounted within the top of the door, and the slide track within the head frame (or viceversa),
the Briton 2400 Series offers high resistance to abuse and offers a highly aesthetic solution, as it is fully concealed when the door is closed.
Providing exceptional ease of use by reducing the resistance encountered when opening the door, the Briton 2400 Series bridges the gap between the requirements for smoke control and ease of operation required for accessibility.

PRODUCT FEATURES

Compact extruded aluminium body with cam action technology

High quality hydraulic fluid with built-in temperature compensation

Needle roller bearings provide increased bearing load for efficient operation and reliability

Aluminium slide track 23mm wide

Powder coated steel track arm with nylon runner

Separate closing speed and latch action adjustment

Optional mechanical hold-open available: 80° - 120°angle

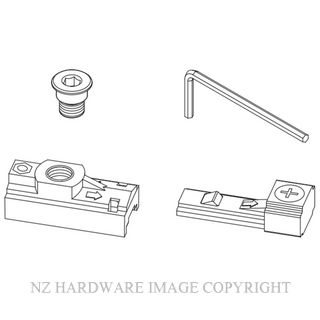

Fire.pngSupplied With Fixings
Function.pngTrack Arm Cam Action Door Closer
Function.pngNon Hold Open Door Closer

Minimum Door Thickness - 40mm
Maximum Interior Door Width - 1100mm
Maximum Exterior Door Width - 850mm
Door Weight - 40 - 80kg
Door Closer Strength - 2 to 4 Adjustable
Supplier No BNT-2420-T-SE

Fire.pngFire Rated Check with your door supplier if these closers are approved for your doors

Finish - Silver Grey

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

CLICK TO VIEW ALL SATIN CHROME & SILVER PRODUCTS

Code Supplier Part Number Image Name Unit Application Function Product Options Product Features Finish Capacity Strength Fire Rated Price Quantity
BT2420B T SG BNT-2420-T-SE BRITON BT2420 T SG CONCEALED CAM ACTION CLOSER SILVER GREY
  • Unit:
    Each
  • Application:
    Internal Door
  • Function:
    Fire Door,Office Door,Service Door,Storeroom Door,Toilet Lobby
  • Product Options:
    Concealed In Door
  • Product Features:
    Non Hold Open
  • Finish:
    Silver Grey
  • Capacity:
    3 - High Usage
  • Strength:
    2 to 4
  • Fire Rated:
    Fire Rated
Each Internal Door Fire Door,Office Door,Service Door,Storeroom Door,Toilet Lobby Concealed In Door Non Hold Open Silver Grey 3 - High Usage 2 to 4 Fire Rated
$656.37 (exc GST)
