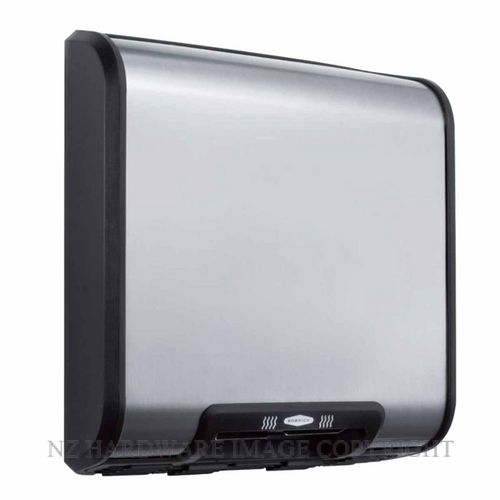

Cover — 22-gauge galvanized steel with exposed surface type-304 stainless steel with #4 satin-finish vertical grain (B-7128) or
22-gauge mild steel zinc plated with high-gloss white epoxy paint finish (B-7120) covers with UL 94-5VA black plastic trim and
side panels. Cover equipped with uniquely designed dual air outlets. Air-inlet is equipped with vandal-resistant grille. Cover
projects no more than 4" (100mm) from wall and is secured to mounting base with two vandal-resistant, recessed hex screws.
Mounting Base — 20-gauge (1.5mm) plated steel with four 0.236'' (6mm) diameter mounting holes.
Motor — Universal, 1/7 hp, 8000 rpm, on resilient mounting. Sealed ball bearing at drive-shaft end and self-lubricating sleeve
bearing at nondrive end. Equipped with automatic thermal-overload switch.
Fans — Two balanced, double-inlet centrifugal fans are mounted on motor shaft; directs airflow over heating element at 71 cfm.
Heating Element — Two coiled nickel-chrome heating elements are mounted in mica frame and protected by automatic
thermal-overload switches. Heating elements, heat air without hot spots — inaccessible to vandals.
Electronic Control — Infrared sensor automatically turns dryer on when hands are held under air-outlet opening and across
path of sensor. Remove hands from path of sensor and dryer stops. Electronic sensor has automatic shutoff approximately
1-1/2 minutes after dryer turns on if an inanimate object is placed across air-outlet opening. After inanimate object is removed,
electronic sensor automatically resets itself and dryer operates normally.
