YALE ARIA (27) PALLADIUM 40MM 2PT 13MM LOCK KITSET POWDERCOAT

YALE ARIA (27) PALLADIUM 40MM 2PT 13MM LOCK KITSET POWDERCOAT

YALE ARIA (27) 40MM 13MM 2 POINT LOCKING KITSETS (POWDERCOAT)

As part of the Palladium series, the Acacia handle represents the highest standard of residential and semi-commercial door hardware. With superior performance and elegant styling the Acacia handle complements a wide range of modern joinery. The handles have been created specifically for external doors with a long plate design which complements aluminium joinery. By having a range of levers, also available on other escutcheons within ASSA ABLOY’s product range, customers can achieve a consistent look throughout the home by matching their internal and external door hardware.

The Induro mortice lock offers a new and improved locking system with enhanced furniture options available. When deadlocked, the Induro 2-Point provides increased security with two points of locking. Made specifically for the New Zealand environment, this is an ideal locking solution.

Designed to be used in conjunction with the Verona and Palladium furniture ranges.

Features
  • Features 2 points of locking from the latch and deadbolt
  • The handing of the lockset is adjusted by reversing the orientation of the latch bolt
  • 85mm pitch
  • Stainless steel forend plate
  • Adjustable latch projection
  • Latch wear insert included
  • Achieves Australian Standards AS4145: 2008 (Part 2) Security Level S7 and Durability Level D7
  • The Acacia furniture mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life
  • Includes 92mm x 7.6mm square stepped spindle
  • 30/30 Euro double cylinder cylinder
  • When used with the correct strike the lock generates optimum seal compression to provide improved water and air seal performance, especially for large panel doors
Fire.pngSupplied With Fixings

Sets Come Complete With All Items Required For Standard Operation.
Lock strike plate not included with lock but can be purchased separately if required

Backset - 40mm
Bolt Throw -  13mm
Door Thickness - 35mm-41mm
Cylinder Length - 60mm - Double Keyed & Key & Turn
Cylinder Length - 30mm - Key Only Or Turn Only
Pitch (Cylinder Spacing - 85mm


Key or turn locks or unlocks both handles and latchbolt

Available Finishes - Matt Black - Popular Powdercoat - Satin

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

CLICK TO VIEW ALL POWDERCOAT PRODUCTS

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Function Product Features Finish Backset Bolt Throw Returns Policy Privacy Policy Price Quantity

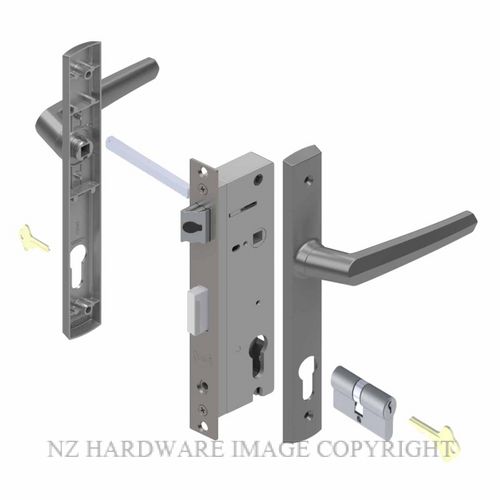

YLPL8230127P PL8230127P YALE PL8230127P PALLADIUM 40MM 2PT 13MM DOUBLE KEY LOCKSET POWDERCOAT
  • Unit:
    Set
  • Function:
    Lock Kit With Double Key Cylinder
  • Product Features:
    2 Point Locking Locks
  • Finish:
    Powdercoat
  • Backset:
    40mm
  • Bolt Throw:
    13mm
  • Returns Policy:
    Non Returnable Item
 Set Lock Kit With Double Key Cylinder 2 Point Locking Locks Powdercoat 40mm 13mm Non Returnable Item Non Returnable Item
$202.77 (exc GST)

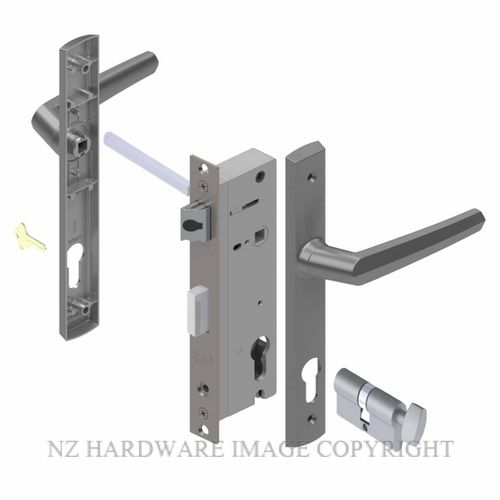

YLPL8230227P PL8230227P YALE PL8230227P PALLADIUM 40MM 2PT 13MM KEY-TURN LOCKSET POWDERCOAT
  • Unit:
    Set
  • Function:
    Lock Kit With Key & Turn Cylinder
  • Product Features:
    2 Point Locking Locks
  • Finish:
    Powdercoat
  • Backset:
    40mm
  • Bolt Throw:
    13mm
  • Returns Policy:
    Non Returnable Item
 Set Lock Kit With Key & Turn Cylinder 2 Point Locking Locks Powdercoat 40mm 13mm Non Returnable Item Non Returnable Item
$202.77 (exc GST)

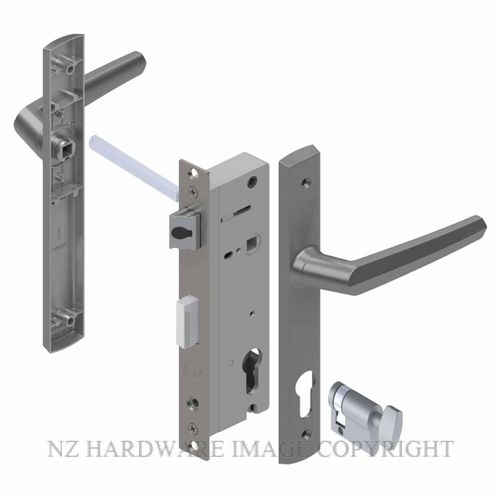

YLPL8230327P PL8230327P YALE PL8230327P PALLADIUM 40MM 2PT 13MM INT-TURN LOCKSET POWDERCOAT
  • Unit:
    Set
  • Function:
    Lock Kit With Int Turn Cylinder
  • Product Features:
    2 Point Locking Locks
  • Finish:
    Powdercoat
  • Backset:
    40mm
  • Bolt Throw:
    13mm
  • Returns Policy:
    Non Returnable Item
 Set Lock Kit With Int Turn Cylinder 2 Point Locking Locks Powdercoat 40mm 13mm Non Returnable Item Non Returnable Item
$202.77 (exc GST)

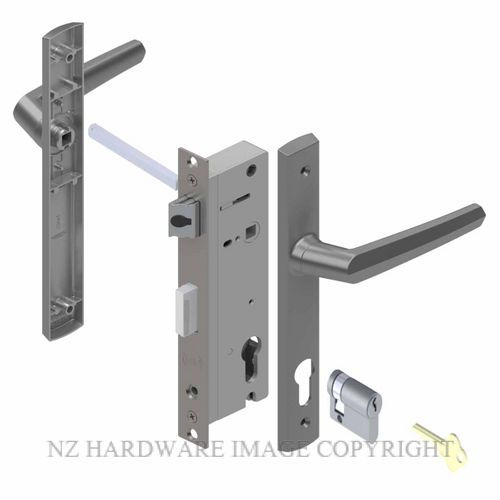

YLPL8230427P PL8230427P YALE PL8230427P PALLADIUM 40MM 2PT 13MM INT-KEY LOCKSET POWDERCOAT
  • Unit:
    Set
  • Function:
    Lock Kit With Int Key Cylinder
  • Product Features:
    2 Point Locking Locks
  • Finish:
    Powdercoat
  • Backset:
    40mm
  • Bolt Throw:
    13mm
  • Returns Policy:
    Non Returnable Item
 Set Lock Kit With Int Key Cylinder 2 Point Locking Locks Powdercoat 40mm 13mm Non Returnable Item Non Returnable Item
$202.77 (exc GST)
