YALE ACACIA (29) PALLADIUM 30MM 4PT 13MM LOCK KITSET POWDERCOAT

Yale Acacia Induro Hinged Door Lock

As part of the Palladium series, the Acacia handle represents the highest standard of residential and semi-commercial door hardware. With superior performance and elegant styling the Aria handle complements a wide range of modern joinery. The handles have been created specifically for external doors with a long plate design which complements aluminium joinery. By having a range of levers, also available on other escutcheons within ASSA ABLOY’s product range, customers can achieve a consistent look throughout the home by matching their internal and external door hardware.

The Induro mortice lock offers a new and improved locking system with enhanced furniture options available. When deadlocked, the Induro 4-Point provides increased security with four points of locking. Made specifically for the New Zealand environment, this is an ideal locking solution.

Designed to be used in conjunction with the Verona and Palladium furniture ranges.

Features

• Features 4 points of locking from the latch, deadbolt and two shootbolts (included)
• Sequencing of locking points can be in any order (can be locked with or without shootbolts thrown)
• The handing of the lockset is adjusted by reversing the orientation of the latch bolt
• 30mm backset mortise lock
• 13mm short throw on lifting deadbolt
• 85mm pitch
• Stainless steel forend plate
• Adjustable latch projection
• Latch wear insert included
• Achieves Australian Standards AS4145: 2008
• The Aria Palladium furniture mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life
• Includes 7.6 mm square stepped spindle
• 30/30 Euro double cylinder
• When used with the correct strike the lock generates optimum seal compression to provide improved water and air seal performance, especially for large panel doors
• Designed for aluminium joinery suites

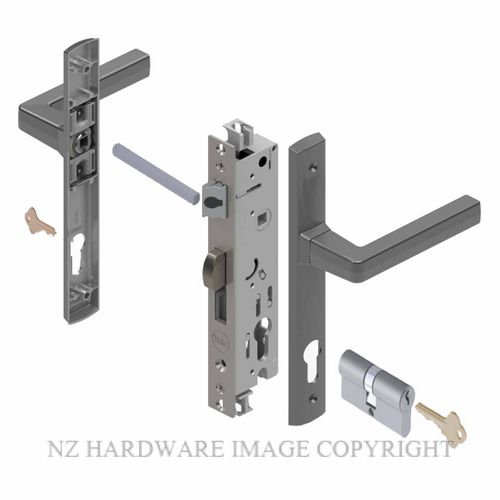

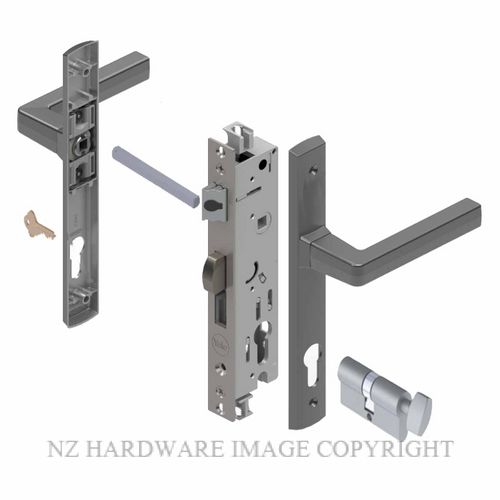

Sets Come Complete with handle set-lock body & cylinder.
Lock strike plate & 4 point locking rods are not included but can be purchased separately if required

Backset - 30mm
Bolt Throw -  13mm
Door Thickness - 35mm-41mm
Cylinder Length - 60mm - Double Keyed & Key & Turn
Cylinder Length - 30mm - Key Only Or Turn Only
4 Point Rod Lengths Not Supplied With Kitset - (1) 1Mtr - (1) 1.3Mtr
Pitch (Cylinder Spacing - 85mm

Lifting handles throws top & Bottom rods, pulling down handles when lock is unlocked retracts rods
Key or turn locks or unlocks handles

Available Finishes - Matt Black - Popular Powdercoat - Satin

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

CLICK TO VIEW ALL POWDERCOAT PRODUCTS
