YALE ARIA (27) PALLADIUM 30MM 4PT 13MM LOCK KITSET SATIN CHROME

YALE ARIA (27) PALLADIUM 30MM 4PT 13MM LOCK KITSET SATIN CHROME

YALE ARIA (27) PALLADIUM 30MM 4 POINT LOCKING KITSETS (SATIN CHROME)

Yale Aria Induro Hinged Door Lock As part of the Palladium series, the Aria handle represents the highest standard of residential and semi-commercial door hardware. With superior performance and elegant styling the Aria handle complements a wide range of modern joinery. The handles have been created specifically for external doors with a long plate design which complements aluminium joinery. By having a range of levers, also available on other escutcheons within ASSA ABLOY’s product range, customers can achieve a consistent look throughout the home by matching their internal and external door hardware. The Induro mortice lock offers a new and improved locking system with enhanced furniture options available. When deadlocked, the Induro 4-Point provides increased security with four points of locking. Made specifically for the New Zealand environment, this is an ideal locking solution. Designed to be used in conjunction with the Verona and Palladium furniture ranges. Features Features 4 points of locking from the latch, deadbolt and two shootbolts (included) Sequencing of locking points can be in any order (can be locked with or without shootbolts thrown) The handing of the lockset is adjusted by reversing the orientation of the latch bolt 30mm backset mortise lock 13mm short throw on lifting deadbolt 85mm pitch Stainless steel forend plate Adjustable latch projection Latch wear insert included Achieves Australian Standards AS4145: 2008 The Aria Palladium furniture mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life Includes 7.6 mm square stepped spindle 30/30 Euro double cylinder When used with the correct strike the lock generates optimum seal compression to provide improved water and air seal performance, especially for large panel doors Designed for aluminium joinery suites
	Supplied With Fixings
	Sets Come Complete with handle set-lock body & cylinder. Lock strike plate & 4 point locking rods are not included but can be purchased separately if required
	Backset - 30mm Bolt Throw - 13mm Door Thickness - 35mm-41mm Cylinder Length - 60mm - Double Keyed & Key & Turn Cylinder Length - 30mm - Key Only Or Turn Only 4 Point Rod Lengths Not Supplied With Kitset - (1) 1Mtr - (1) 1.3Mtr Pitch (Cylinder Spacing - 85mm
	Lifting handles throws top & Bottom rods, pulling down handles when lock is unlocked retracts rods Key or turn locks or unlocks handles
	Available Finishes - Matt Black - Popular Powdercoat - Satin FOR RELATED PRODUCTS REFER BOTTOM OF PAGE CLICK TO VIEW ALL SATIN CHROME & SILVER PRODUCTS

Downloadable Files

Downloads

Code	Supplier Part Number	Image	Name	Unit	Function	Product Features	Finish	Backset	Bolt Throw	Returns Policy	Privacy Policy	Price	Quantity

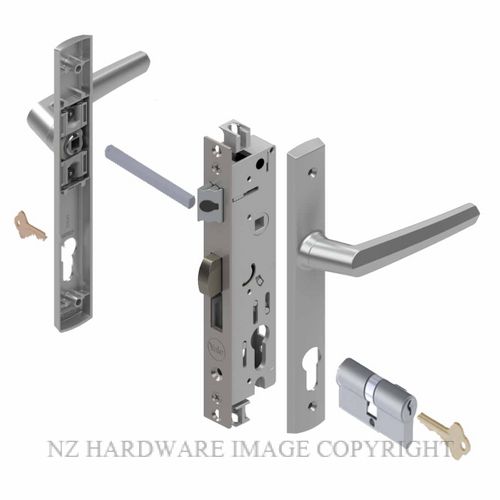

YLPL8300127SC	PL8300127SC		YALE PL8300127SC ARIA 30MM 4PT 13MM DOUBLE KEY LOCKSET SATIN CHROME Unit: Set Function: Lock Kit With Double Key Cylinder Product Features: 4 Point Locking Locks Finish: Satin Chrome Backset: 30mm Bolt Throw: 13mm Returns Policy: Non Returnable Item	Set	Lock Kit With Double Key Cylinder	4 Point Locking Locks	Satin Chrome	30mm	13mm	Non Returnable Item	Non Returnable Item	Retail: $313.57 (exc GST) Special: $279.08 (exc GST)	Quantity:
YLPL8300227SC	PL8300227SC		YALE PL8300227SC ARIA 30MM 4PT 13MM KEY-TURN LOCKSET SATIN CHROME Unit: Set Function: Lock Kit With Key & Turn Cylinder Product Features: 4 Point Locking Locks Finish: Satin Chrome Backset: 30mm Bolt Throw: 13mm Returns Policy: Non Returnable Item	Set	Lock Kit With Key & Turn Cylinder	4 Point Locking Locks	Satin Chrome	30mm	13mm	Non Returnable Item	Non Returnable Item	Retail: $313.57 (exc GST) Special: $279.08 (exc GST)	Quantity:

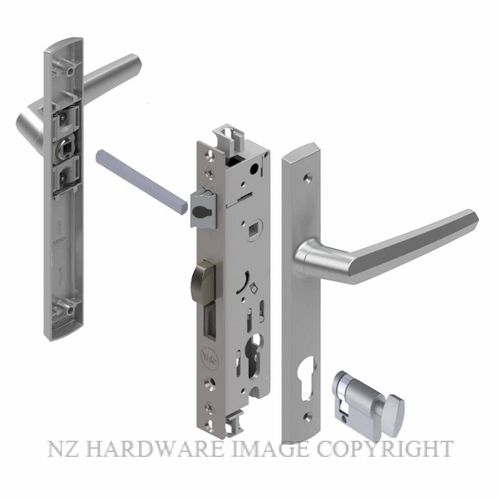

YLPL8300427SC	PL8300427SC		YALE PL8300427SC ARIA 30MM 4PT 13MM INT-TURN LOCKSET SATIN CHROME Unit: Set Function: Lock Kit With Int Turn Cylinder Product Features: 4 Point Locking Locks Finish: Satin Chrome Backset: 30mm Bolt Throw: 13mm Returns Policy: Non Returnable Item	Set	Lock Kit With Int Turn Cylinder	4 Point Locking Locks	Satin Chrome	30mm	13mm	Non Returnable Item	Non Returnable Item	Retail: $313.57 (exc GST) Special: $279.08 (exc GST)	Quantity:

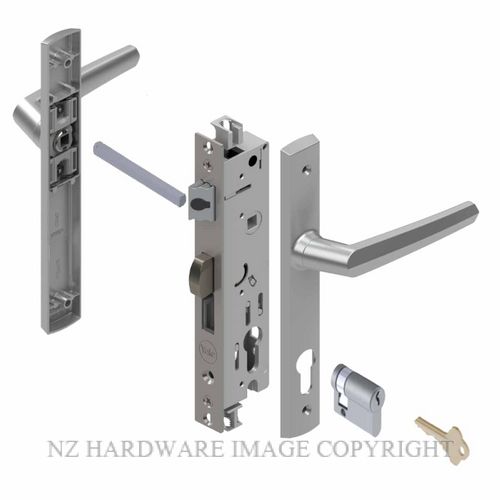

YLPL8300327SC	PL8300327SC		YALE PL8300327SC ARIA 30MM 4PT 13MM INT-KEY LOCKSET SATIN CHROME Unit: Set Function: Lock Kit With Int Key Cylinder Product Features: 4 Point Locking Locks Finish: Satin Chrome Backset: 30mm Bolt Throw: 13mm Returns Policy: Non Returnable Item	Set	Lock Kit With Int Key Cylinder	4 Point Locking Locks	Satin Chrome	30mm	13mm	Non Returnable Item	Non Returnable Item	Retail: $313.57 (exc GST) Special: $279.08 (exc GST)	Quantity:
