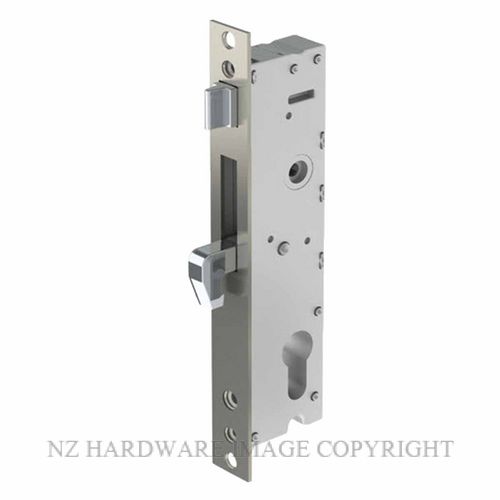

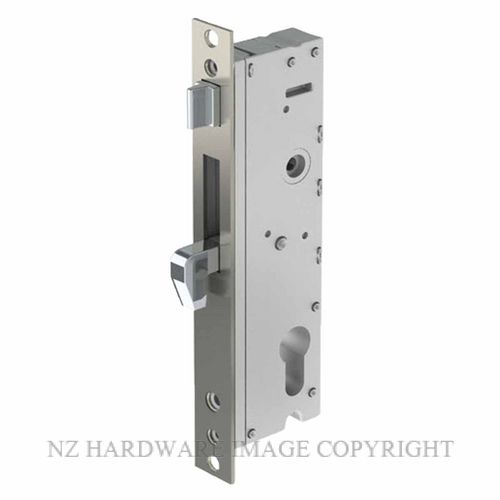

YALE PINNACLE PI80000 - PI80200 1 POINT SLIDING DOOR LOCK

The Pinnacle Sliding Door Lock has been developed with features designed to significantly improve functionality in sliding door applications. The lock features the unique security of a single hookbolt with an anti-lift feature between the lock and the strike.

Features:

  • Adjustable strike with additional 3mm packer (sold separately)
  • 30mm backset Yale Pinnacle mortice lock
  • Deadbolt locking
  • Anti-lift design
  • Anti-slam mechanism protects accidental damage to hook bolt when door is closed
  • Stainless steel forend plate
  • Robust design
  • Built to withstand a 4kN force entry load and 100,000 locking cycles
  • Identical standard routing details to other Optimum Mortice Locks
  • Can be keyed alike to other ASSA ABLOY CYL4™ 5-Pin locks for one key convenience (cylinder not included)


If you require assistance with your selection please contact us either by email or phone.

Fire.pngSupplied With Fixings

Backsets - 30mm - 35mm - 40mm
Depth - 45.6mm - 50.6mm - 55.6mm
Door Thickness - 32mm - 45mm
Bolt Throw - 18mm

Made From - Stainless 304

Available Finish - Satin Stainless

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

CLICK TO VIEW ALL STAINLESS STEEL PRODUCTS

Code Supplier Part Number Image Name Unit Application Function Finish Depth Backset Door Thickness Returns Policy Privacy Policy Price Quantity
YLPI80000 PI80000 YALE PI80000 PINNACLE 30MM SLIDING DOOR LOCK SATIN STAINLESS
  • Unit:
    Each
  • Application:
    Euro Cyl Sliding Door Lock
  • Function:
    Lock Body Only
  • Finish:
    Stainless (Satin 304)
  • Depth:
    45.6mm
  • Backset:
    30mm
  • Door Thickness:
    32mm-45mm
  • Returns Policy:
    Non Returnable Item
 Each Euro Cyl Sliding Door Lock Lock Body Only Stainless (Satin 304) 45.6mm 30mm 32mm-45mm Non Returnable Item Non Returnable Item
Retail: $160.27 (exc GST)
Special: $142.64 (exc GST)
YLPI80100 PI80100 YALE PI80100 PINNACLE 35MM SLIDING DOOR LOCK SATIN STAINLESS
  • Unit:
    Each
  • Application:
    Euro Cyl Sliding Door Lock
  • Function:
    Lock Body Only
  • Finish:
    Stainless (Satin 304)
  • Depth:
    50.6mm
  • Backset:
    35mm
  • Door Thickness:
    32mm-45mm
  • Returns Policy:
    Non Returnable Item
 Each Euro Cyl Sliding Door Lock Lock Body Only Stainless (Satin 304) 50.6mm 35mm 32mm-45mm Non Returnable Item Non Returnable Item
Retail: $162.17 (exc GST)
Special: $144.33 (exc GST)
YLPI80200 PI80200 YALE PI80200 PINNACLE 40MM SLIDING DOOR LOCK SATIN STAINLESS
  • Unit:
    Each
  • Application:
    Euro Cyl Sliding Door Lock
  • Function:
    Lock Body Only
  • Finish:
    Stainless (Satin 304)
  • Depth:
    55.6mm
  • Backset:
    40mm
  • Door Thickness:
    32mm-45mm
  • Returns Policy:
    Non Returnable Item
 Each Euro Cyl Sliding Door Lock Lock Body Only Stainless (Satin 304) 55.6mm 40mm 32mm-45mm Non Returnable Item Non Returnable Item
Retail: $164.09 (exc GST)
Special: $146.04 (exc GST)
