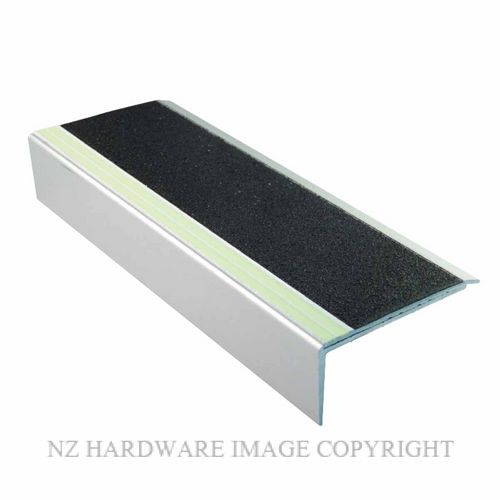

 ECOGLO F15 STEP NOSING (SILVER ANODIZED)

The F15-175 Step Nosing is designed to ensure visibility of steps in escape routes to meet NZBC Clause F6 “Visibility in Escape Routes”. The Step Nosing will be effective in all light conditions including during failure of the main lighting.

COMPOSITION
Step Nosing profile consisting of 6060T5 aluminium extrusion, anodized (natural/silver colour) to 20 microns thickness.

Ecoglo E14-075 Step Edge Contrast is adhesively fixed into the extrusion. The high visibility E14-075 is manufactured from extruded 6063T5 aluminium section. Silicon Carbide anti-slip materials and custom made photoluminescent pigment are embedded in thermoset polyester carriers to integrally bond the active ingredients into the aluminium following curing at high temperature. The photoluminescent area is
also recessed into protective channels.
INSTALLATION
The F15-175 Step Nosing is installed with hidden fixers and can be used on a range of substrates including concrete, timber, tiles, vinyl, steel and checker plate. Uni clamp assemblies can be used for installation onto steel mesh steps.
Maximum recommended length for outdoor installation is 1500mm. Installation needs to be carried out strictly in accordance with the
Ecoglo installation instructions.
Consult Installation Instructions on website for full details and surface
preparation.

If you require assistance with your selection please contact us either by email or phone.

Fire.pngSupplied With Fixings

Lengths - 800mm - 900mm - 1000mm - 1100mm - 1200mm - 1300mm - 1400mm - 1500mm
Height - 33.2mm
Width - 75.2mm

Made From - Aluminium

Available Finish - Silver Anodized

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Overall Length Width Height Mounting Returns Policy Privacy Policy Price Quantity
ECF15-175-800 F15-175-800 ECOGLO ECF15-175-800 STEP NOSING 85MM X 10MM - 800MM DRILLED
  • Unit:
    Each
  • Overall Length:
    800mm
  • Width:
    75.2mm
  • Height:
    33.2mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 800mm 75.2mm 33.2mm Screw Fix Non Returnable Item Non Returnable Item
$37.97 (exc GST)
ECF15-175-900 F15-175-900 ECOGLO ECF15-175-900 STEP NOSING 85MM X 10MM - 900MM DRILLED
  • Unit:
    Each
  • Overall Length:
    900mm
  • Width:
    75.2mm
  • Height:
    33.2mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 900mm 75.2mm 33.2mm Screw Fix Non Returnable Item Non Returnable Item
$42.64 (exc GST)
ECF15-175-1000 F15-175-1000 ECOGLO ECF15-175-1000 STEP NOSING 85MM X 10MM - 1000MM DRILLED
  • Unit:
    Each
  • Overall Length:
    1000mm
  • Width:
    75.2mm
  • Height:
    33.2mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 1000mm 75.2mm 33.2mm Screw Fix Non Returnable Item Non Returnable Item
$47.84 (exc GST)
ECF15-175-1100 F15-175-1100 ECOGLO ECF15-175-1100 STEP NOSING 85MM X 10MM - 1100MM DRILLED
  • Unit:
    Each
  • Overall Length:
    1100mm
  • Width:
    75.2mm
  • Height:
    33.2mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 1100mm 75.2mm 33.2mm Screw Fix Non Returnable Item Non Returnable Item
$52.53 (exc GST)
ECF15-175-1200 F15-175-1200 ECOGLO ECF15-175-1200 STEP NOSING 85MM X 10MM - 1200MM DRILLED
  • Unit:
    Each
  • Overall Length:
    1200mm
  • Width:
    75.2mm
  • Height:
    33.2mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 1200mm 75.2mm 33.2mm Screw Fix Non Returnable Item Non Returnable Item
$57.20 (exc GST)
ECF15-175-1300 F15-175-1300 ECOGLO ECF15-175-1300 STEP NOSING 85MM X 10MM - 1300MM DRILLED
  • Unit:
    Each
  • Overall Length:
    1300mm
  • Width:
    75.2mm
  • Height:
    33.2mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 1300mm 75.2mm 33.2mm Screw Fix Non Returnable Item Non Returnable Item
$61.87 (exc GST)
ECF15-175-1400 F15-175-1400 ECOGLO ECF15-175-1400 STEP NOSING 85MM X 10MM - 1400MM DRILLED
  • Unit:
    Each
  • Overall Length:
    1400mm
  • Width:
    75.2mm
  • Height:
    33.2mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 1400mm 75.2mm 33.2mm Screw Fix Non Returnable Item Non Returnable Item
$66.56 (exc GST)
ECF15-175-1500 F15-175-1500 ECOGLO ECF15-175-1500 STEP NOSING 85MM X 10MM - 1500MM DRILLED
  • Unit:
    Each
  • Overall Length:
    1500mm
  • Width:
    75.2mm
  • Height:
    33.2mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 1500mm 75.2mm 33.2mm Screw Fix Non Returnable Item Non Returnable Item
$71.23 (exc GST)
