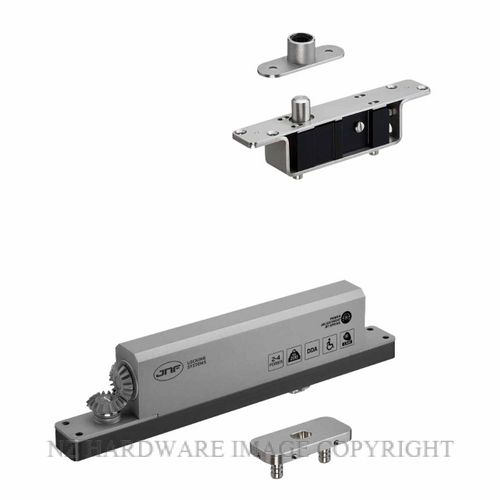

JNF IN.05.214 HYDRALIC PIVOTING SYSTEM FOR DOORS  (SATIN STAINLESS)

The CAM SYSTEM combined with hydraulics allows the closing control of large swing doors, while opening them with little effort. The doors can be single or double action, with thickness from 40mm.
The system is hidden inside the door, with only a small base on the floor, with bidirectional regulation and a rotation point on the roof or upper frame of the door with built-in bearing

  • The closing control is carried out by two valves that can precisely adjust the initial
    and final closing speed, the final speed being especially important when the door
    has a lock installed. In order to cover doors with weights from 40 to 200kg,
    lengths up to 3000mm and height up to 4000mm the system has force
    adjustment, which can be done with the door already installed.
    One of the characteristics of this system is that the rotation point of the door can be
    from 40mm to the center of the door, with the installation being made from the top
    of the door, which allows the doors to go up to the ceiling.
  • If you require assistance with your selection please contact us either by email or phone.
Fire.pngSupplied With Fixings

Length - 299mm
Width - 32mm
Maximum Door Weight - 200kg
Minimum Door Thickness - 40mm
Maximum Door Width - 3000mm
Maximum Door Height - 4000mm
Hold Open Angle - 90Deg

Available Finish - Stainless Steel

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

CLICK TO VIEW ALL STAINLESS STEEL PRODUCTS

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Product Features Finish Capacity Door Thickness Returns Policy Privacy Policy Price Quantity
JNIN05214 IN.05.214 JNF IN.05.214 HYDRALIC PIVOT FOR WOODED DOORS
  • Unit:
    Set
  • Product Features:
    Non Hold Open
  • Finish:
    Stainless (Satin 304)
  • Capacity:
    200kg
  • Door Thickness:
    40mm Minimum
  • Returns Policy:
    20 Percent Surcharge
 Set Non Hold Open Stainless (Satin 304) 200kg 40mm Minimum 20 Percent Surcharge 20 Percent Surcharge
Retail: $2,401.16 (exc GST)
Special: $2,233.08 (exc GST)
JNIN05214HO IN.05.214.HO JNF IN.05.214.HO HOLD OPEN HYDRALIC PIVOT FOR WOODED DOORS
  • Unit:
    Set
  • Product Features:
    Hold Open 90deg
  • Finish:
    Stainless (Satin 304)
  • Capacity:
    200kg
  • Door Thickness:
    40mm Minimum
  • Returns Policy:
    20 Percent Surcharge
 Set Hold Open 90deg Stainless (Satin 304) 200kg 40mm Minimum 20 Percent Surcharge 20 Percent Surcharge
Retail: $2,401.16 (exc GST)
Special: $2,233.08 (exc GST)
