MATERIALS:
Cabinet — 18-8, Type-304, heavy-gauge stainless steel. All-welded construction.
Exposed surfaces have satin-finish.
Door — 18-8, Type-304, 20-gauge (0.9mm) stainless steel with satin-finish. Secured to cabinet with two rivets. Equipped with a tumbler lock
keyed like other Bobrick washroom accessories. Tumbler lock flush with the door - no protrusion.
Spindle — 18-8, Type-304, 18-gauge (1.2mm), 1" diameter (25mm) stainless steel tubing with plastic end caps. Theft resistant. Removable with
key provided.
OPERATION:

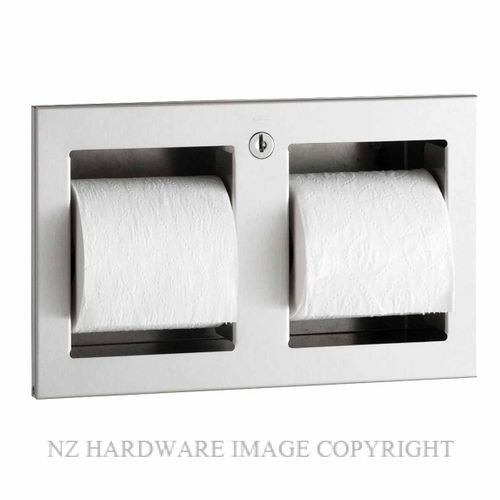

Unit holds two standard-core toilet tissue rolls up to 5-1/8" (130mm) diameter (1500 sheets). To service toilet tissue dispenser, unlock
door with key provided and slide spindle out on any direction.
INSTALLATION:
Provide framed rough wall opening 12-1/2" wide x 7-3/8" high (318 x 187mm). Minimum recessed depth required from finish face of wall is 4"
(102mm). Allow clearance for construction features that may protrude into rough wall opening from opposite wall. Coordinate with mechanical
engineer to avoid pipes, vents, and conduits in wall. Mount cabinet with shims between framing and cabinet at all points indicated by an S, then
secure unit with (4) #10 x 1-1/4" (4.8 x 32mm) sheet-metal screws (not furnished).
