OPERATION:

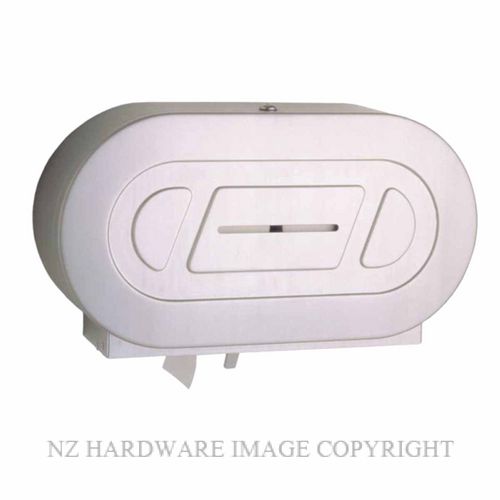

Door unlocks with key provided and swings down for loading dispenser. Spindles accommodate two toilet tissue rolls up to (255mm) diameter with (75mm) diameter core, or remove outer spindle (which is held in place with 3 snaps) from the inner
spindles to accommodate (55mm) diameter core rolls. Unique sliding access panel exposes one roll at a time for patron use, assuring uninterrupted, complete no-waste use of first roll before starting the reserve roll; allows easy roll change-over.
When first roll is depleted, move the lever at the bottom of dispenser to the left until sliding access panel locks in position and exposes roll on right. When door is opened for reloading, the sliding access panel automatically releases and returns to the
original position on the right. Move the remaining roll to the first position on left and install a new roll on the right spindle.
Wide viewing slot in door reveals the amount of toilet tissue on both rolls. Unit is designed for quick reloading.
INSTALLATION:
Mount unit on wall or toilet partition with four sheet-metal screws, furnished by manufacturer, at points indicated by an S. Rear edge of unit should be 20" (510mm) from back wall. This locates toilet tissue within (305mm) of front of standard toilet that
projects (760mm) from back wall.
For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws furnished. For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws
furnished, or provide 1/4" (6mm) toggle bolts or expansion bolts.
For partitions with particle-board or other solid core, secure with sheet-metal screws or provide through-bolts, nuts, and washers. For hollow-core metal partitions, provide solid backing into which sheet-metal screws can be secured. If two units are installed back-to-back, then provide threaded sleeves and machine screws for the full thickness of partition.
