OPERATION:

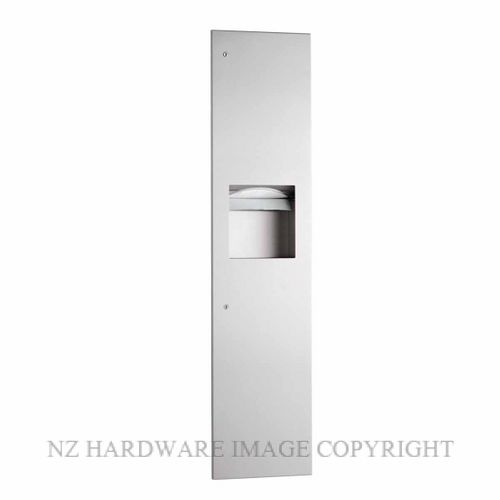

Paper towel dispenser is adjustable to dispense C-fold, multifold, or singlefold paper towels without use of additional adapters or towel trays. To service waste receptacle, unlock door with key provided and remove waste container. Cable door-swing limiter prevents damage to washroom accessories and walls.
INSTALLATION:
Provide framed rough wall opening 11-1/2'' wide x 53-5/8'' high (292 x 1362mm). Minimum recessed depth required from finish face of wall is 5-3/4'' (146mm). Allow clearance for construction features that may protrude into rough wall opening from opposite wall.
Coordinate with mechanical engineer to avoid pipes, vents, and conduits. If unit projects above top of wainscot, provide aluminum channel or other filler to eliminate gap between flange and finish face of wall. Mount cabinet with shims between framing and cabinet at
all points indicated by an S, then secure with #8 x 1-1/4" (4.2 x 32mm) sheet-metal screws (not furnished). If you require assistance with your selection please contact us either by email or phone. |
