BRIO WR50 WARDROBE ROLL 50 DOUBLE BOTTOM ROLLER TRACK SOFT CLOSE

BRIO WARDROBE ROLL 50 SOFT CLOSE BOTTOM ROLLER DOOR TRACK

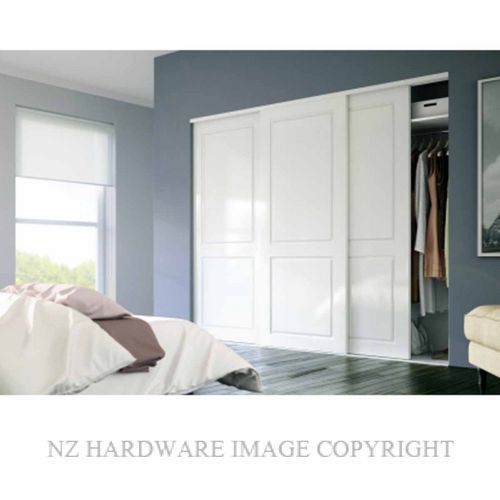

Suitable for interior sliding timber panels for wardrobes, built-in furniture and other applications where a quiet, smooth action is required.
The double run system for bi-passing panels uses clear anodised or powder coated white aluminium and bottom rollers. Vertical adjustment possible when panels are in situ.
Clean line profiles on the double head guide and sill provide a discreet framing system which also works with an optional soft close. Soft closes ensure panels are stopped gently, protecting little hands from slamming doors.

Available Finishes - Black Anodised - Clear Anodised - Powdercoat White

MAX PANEL WIDTH	920mm
MAX PANEL WEIGHT	50kg
PANEL THICKNESS	30 - 40mm

PRODUCT DESCRIPTION
ITEM NUMBER	INCLUDED IN KITSET

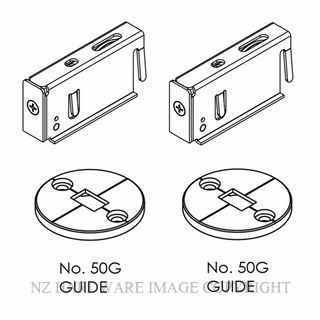

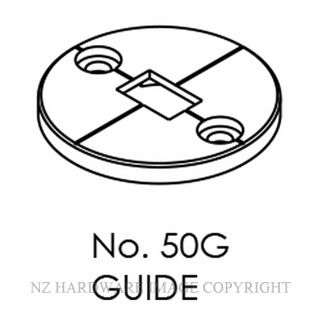

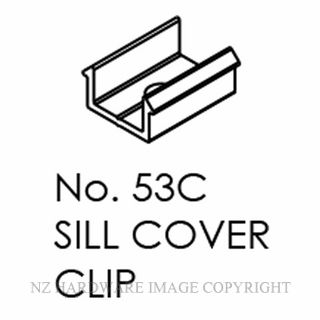

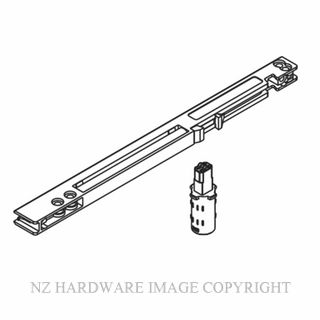

BIWR50L 12 2	Kit with softclose, suitable for two doors, comprising: 1.2m sill extrusion, 1.2m head extrusion, 1.2m sill cover extrusion, sill cover clips, four door rollers, four guides, two lightweight softclose units, all screws and installation instructions.
BIWR50L 15 2	Kit with softclose, suitable for two doors, comprising: 1.5m sill extrusion, 1.5m head extrusion, 1.5m sill cover extrusion, sill cover clips, four door rollers, four guides, two lightweight softclose units, all screws and installation instructions.
BIWR50L 18 2	Kit with softclose, suitable for two doors, comprising: 1.8m sill extrusion, 1.8m head extrusion, 1.8m sill cover extrusion, sill cover clips, four door rollers, four guides, two lightweight softclose units, all screws and installation instructions.
BIWR50L 24 3	Kit with softclose, suitable for three doors, comprising: 2.4m sill extrusion, 2.4m head extrusion, 2.4m sill cover extrusion, sill cover clips, six door rollers, six guides, three lightweight softclose units, all screws and installation instructions.

Downloadable Files

Downloads

brio wardrobe-roll-50.pdf

Code	Supplier Part Number	Name	Unit	Application	Function	Finish	Width	Door Thickness	Door Panel Width	Returns Policy	Privacy Policy	Price	Quantity
BIWR50L 12 2CA	SFHWR50L-12/2CA	BRIO BIWR50L 12 2CA WARDROBE ROLL 50 2 DOOR KIT 1.2M ANODISED Unit: Kitset Application: Residential Use Function: Wardrobe Doors Finish: Clear Anodised Width: 1200mm Opening Door Thickness: 30mm-40mm Door Panel Width: 920mm Returns Policy: Non Returnable	Kitset	Residential Use	Wardrobe Doors	Clear Anodised	1200mm Opening	30mm-40mm	920mm	Non Returnable	Non Returnable	Retail: $235.62 (exc GST) Special: $209.70 (exc GST)	Quantity:
BIWR50L 12 2PWT	SFHWR50L-12/2PWT	BRIO BIWR50L 12 2PWT WARDROBE ROLL 50 2 DOOR KIT 1.2M WHITE Unit: Kitset Application: Residential Use Function: Wardrobe Doors Finish: White Powdercoat Width: 1200mm Opening Door Thickness: 30mm-40mm Door Panel Width: 920mm Returns Policy: Non Returnable	Kitset	Residential Use	Wardrobe Doors	White Powdercoat	1200mm Opening	30mm-40mm	920mm	Non Returnable	Non Returnable	Retail: $235.62 (exc GST) Special: $209.70 (exc GST)	Quantity:
BIWR50L 15 2CA	SFHWR50L-15/2CA	BRIO BIWR50L 15 2CA WARDROBE ROLL 50 2 DOOR KIT 1.5M ANODISED Unit: Kitset Application: Residential Use Function: Wardrobe Doors Finish: Clear Anodised Width: 1500mm Opening Door Thickness: 30mm-40mm Door Panel Width: 920mm Returns Policy: Non Returnable	Kitset	Residential Use	Wardrobe Doors	Clear Anodised	1500mm Opening	30mm-40mm	920mm	Non Returnable	Non Returnable	Retail: $247.40 (exc GST) Special: $220.19 (exc GST)	Quantity:
BIWR50L 15 2PWT	SFHWR50L-15/2PWT	BRIO BIWR50L 15 2PWT WARDROBE ROLL 50 2 DOOR KIT 1.5M WHITE Unit: Kitset Application: Residential Use Function: Wardrobe Doors Finish: White Powdercoat Width: 1500mm Opening Door Thickness: 30mm-40mm Door Panel Width: 920mm Returns Policy: Non Returnable	Kitset	Residential Use	Wardrobe Doors	White Powdercoat	1500mm Opening	30mm-40mm	920mm	Non Returnable	Non Returnable	Retail: $247.40 (exc GST) Special: $220.19 (exc GST)	Quantity:
BIWR50L 18 2CA	SFHWR50L-18/2CA	BRIO BIWR50L 18 2CA WARDROBE ROLL 50 2 DOOR KIT 1.8M ANODISED Unit: Kitset Application: Residential Use Function: Wardrobe Doors Finish: Clear Anodised Width: 1800mm Opening Door Thickness: 30mm-40mm Door Panel Width: 920mm Returns Policy: Non Returnable	Kitset	Residential Use	Wardrobe Doors	Clear Anodised	1800mm Opening	30mm-40mm	920mm	Non Returnable	Non Returnable	Retail: $261.71 (exc GST) Special: $232.92 (exc GST)	Quantity:
BIWR50L 18 2PWT	SFHWR50L-18/2PWT	BRIO BIWR50L 18 2PWT WARDROBE ROLL 50 2 DOOR KIT 1.8M WHITE Unit: Kitset Application: Residential Use Function: Wardrobe Doors Finish: White Powdercoat Width: 1800mm Opening Door Thickness: 30mm-40mm Door Panel Width: 920mm Returns Policy: Non Returnable	Kitset	Residential Use	Wardrobe Doors	White Powdercoat	1800mm Opening	30mm-40mm	920mm	Non Returnable	Non Returnable	Retail: $261.71 (exc GST) Special: $232.92 (exc GST)	Quantity:
BIWR50L 24 3CA	SFHWR50L-24/3CA	BRIO BIWR50L 24 3CA WARDROBE ROLL 50 3 DOOR KIT 2.4M ANODISED Unit: Kitset Application: Residential Use Function: Wardrobe Doors Finish: Clear Anodised Width: 2400mm Opening Door Thickness: 30mm-40mm Door Panel Width: 920mm Returns Policy: Non Returnable	Kitset	Residential Use	Wardrobe Doors	Clear Anodised	2400mm Opening	30mm-40mm	920mm	Non Returnable	Non Returnable	Retail: $337.44 (exc GST) Special: $300.32 (exc GST)	Quantity:
BIWR50L 24 3PWT	SFHWR5L0-24/3PWT	BRIO BIWR50L 24 3PWT WARDROBE ROLL 50 3 DOOR KIT 2.4M WHITE Unit: Kitset Application: Residential Use Function: Wardrobe Doors Finish: White Powdercoat Width: 2400mm Opening Door Thickness: 30mm-40mm Door Panel Width: 920mm Returns Policy: Non Returnable	Kitset	Residential Use	Wardrobe Doors	White Powdercoat	2400mm Opening	30mm-40mm	920mm	Non Returnable	Non Returnable	Retail: $337.44 (exc GST) Special: $300.32 (exc GST)	Quantity:
