BRIO QUICK RUN 120 ZERO CLEARANCE C TRACK

BRIO QUICK RUN 120 ZERO CLEARANCE C TRACK
  • BRIO QUICK RUN 120 ZERO CLEARANCE C TRACK
  • BRIO QUICK RUN 120 ZERO CLEARANCE C TRACK

BRIO QUICK RUN 120 QR120Z C TRACK ZERO CLEARANCE DOOR TRACK

Widely used in internal residential and commercial applications.
To accommodate different building designs, panels can slide to one or both sides.
For ease of operation it is recommended that the panel width should not exceed 75% of panel height.
Timber panels for interior use can be of flush construction or glazed.
Timber panels for industrial applications should be framed, ledged and braced. Metal panels should be constructed of box section, channel or angle framing, well braced and clad with flat or corrugated sheets.
Standard Sets and Packs
Sets comprise of top track, hangers, doors stops, nylon guides, timber
screws and instructions.

Maximum Panel Height - 3000mm
Maximum Panel Weight - 120kg
Minimum Panel Thickness - 32mm
Maximum Panel Width - 950mm

Click To View Video Brio Quick Run 120 Zero Clearance

ITEM NUMBERINCLUDED IN KITSET

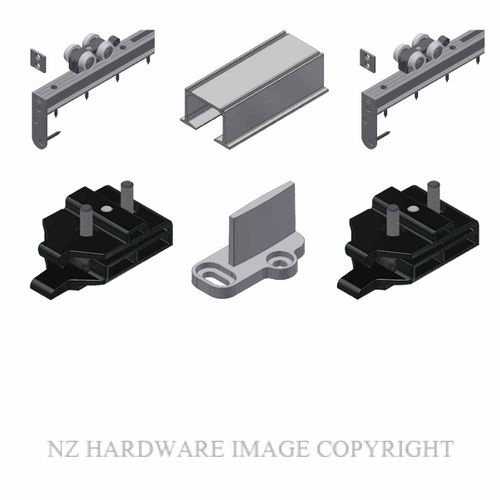

BIQR120Z C20C 1Quick Run 120C 2m kit set with zero clearance door hangers and clip stops
Comprises 2m 120C track, two QRZC door hangers, two clip stops, one saw cut guide
BIQR120Z C30C 1Quick Run 120C 3m kit set with zero clearance door hangers and clip stops
Comprises 3m 120C track, two QRZC door hangers, two clip stops, one saw cut guide

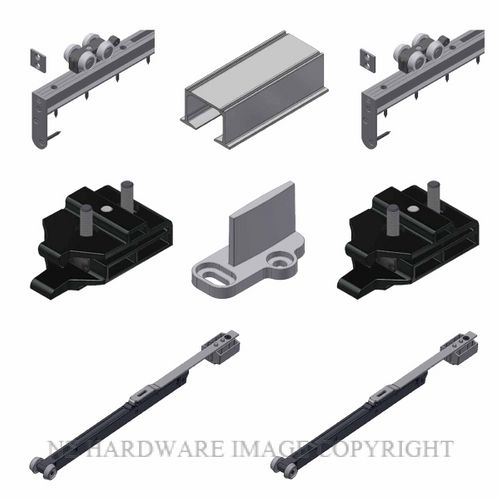

BIQR120Z S20C 1Quick Run 120C 2m kit set with zero clearance door hangers and clip stops
Comprises 2m 120C track, two QRZC door hangers, two soft close units, one saw cut guide
BIQR120Z S30C 1Quick Run 120C 2m kit set with zero clearance door hangers and clip stops
Comprises 2m 120C track, two QRZC door hangers, two soft close units, one saw cut guide
Code Supplier Part Number Image Name Unit Overall Length Price Quantity
BIQR120Z C20C 1 QR120Z-C20C/1 BRIO QR120Z-C20C/1 QUICK RUN 120 ZERO CLEARANCE KIT 2MTR CLIP STOP
  • Unit:
    Set
  • Overall Length:
    2000mm
Set 2000mm
Retail: $458.62 (exc GST)
Special: $408.17 (exc GST)
BIQR120Z C30C 1 QR120Z-C30C/1 BRIO QR120Z-C30C/1 QUICK RUN 120 ZERO CLEARANCE KIT 3MTR CLIP STOP
  • Unit:
    Set
  • Overall Length:
    3000mm
Set 3000mm
Retail: $488.07 (exc GST)
Special: $434.38 (exc GST)
BIQR120Z S20C 1 QR120Z-S20C/1 BRIO QR120Z-S20C/1 QUICK RUN 120 ZERO CLEARANCE KIT 2MTR SOFT CLOSE
  • Unit:
    Set
  • Overall Length:
    2000mm
Set 2000mm
Retail: $702.65 (exc GST)
Special: $625.36 (exc GST)
BIQR120Z S30C 1 QR120Z-S30C/1 BRIO QR120Z-S30C/1 QUICK RUN 120 ZERO CLEARANCE KIT 3MTR SOFT CLOSE
  • Unit:
    Set
  • Overall Length:
    3000mm
Set 3000mm
Retail: $736.31 (exc GST)
Special: $655.32 (exc GST)
