MILES NELSON MNC5200 ANTILOCKOUT ENTRANCE LOCK

MILES NELSON MNC5200 ANTILOCKOUT ENTRANCE LOCK

 MILES NELSON MNC5200 ANTI LOCKOUT VESTIBULE LOCK (SATIN STAINLESS)

The MNC5000 Mortice lock has been successfully tested for endurance within fire door assemblies for up to 120 minutes on E-Core doorsets and 60 minutes on Pyropanel FR board doorsets. Testing was conducted in accordance with Australian Standards
AS1530.4-2014. The MNC5000 lockset did not initiate failure for the duration of the tests.
A fire resistance assessment report has also been issued for the MNC5000 Mortice lock for usage on timber fire doors. The report states that the MNC5000 is suitable for use on 30 and 60 minute timber fire doors.
The Miles Nelson MNC5000 Lock kits are supplied with face plate,strike plate and accessory screw pack,Cylinder & turn adaptor if required.
CYLINDER ESCUTCHEONS,TURNS & DOOR HANDLES ARE NOT INCLUDED & ARE TO BE PURCHASED SEPARATELY

FUNCTION
Latchbolt operated by handle from either side. Outside handle is locked or unlocked by inside turnsnib.
Key outside retracts latchbolt only.
Inside handles are always free.
Latchbolt automatically deadlatches when door is closed.
Anti lockout function avoids accidential lockouts

If you require assistance with your selection please contact us either by email or phone.

Fire.pngSupplied With Fixings

Backset - 60mm
Depth - 88mm
Spindle Hub - 8mm
Door Thickness - 35mm - 55mm

Finish - Satin Stainless

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

CLICK TO VIEW ALL STAINLESS STEEL PRODUCTS

Code Supplier Part Number Image Name Unit Application Function Product Options Finish Door Type Backset Door Thickness Fire Rated Returns Policy Privacy Policy Price Quantity

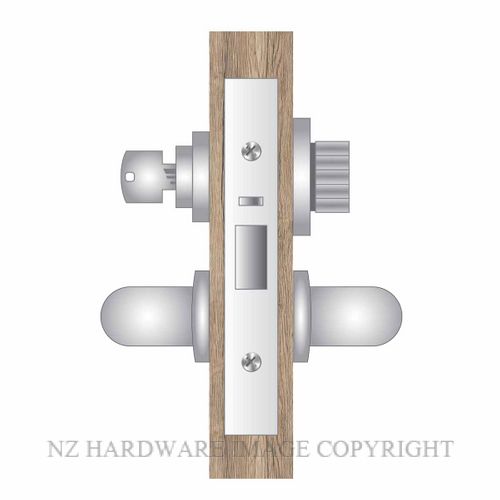

MNC5200LHSCK MNC5200LHSCK MILES NELSON MNC5200LHSCK KEY & TURN ANTI LOCKOUT VESTIBULE OR ENTRANCE LOCK 60MM LH SATIN STAINLESS
  • Unit:
    Set
  • Application:
    Anti-Lockout Lock
  • Function:
    Key & Turn Lockset
  • Product Options:
    Inside Handle Always Free For Egress
  • Finish:
    Satin Chrome
  • Door Type:
    Timber Doors Egress
  • Backset:
    60mm Standard
  • Door Thickness:
    35mm-55mm Doors
  • Fire Rated:
    Fire Rated
  • Returns Policy:
    20 Percent Surcharge
 Set Anti-Lockout Lock Key & Turn Lockset Inside Handle Always Free For Egress Satin Chrome Timber Doors Egress 60mm Standard 35mm-55mm Doors Fire Rated 20 Percent Surcharge 20 Percent Surcharge
Retail: $177.52 (exc GST)
Special: $152.66 (exc GST)

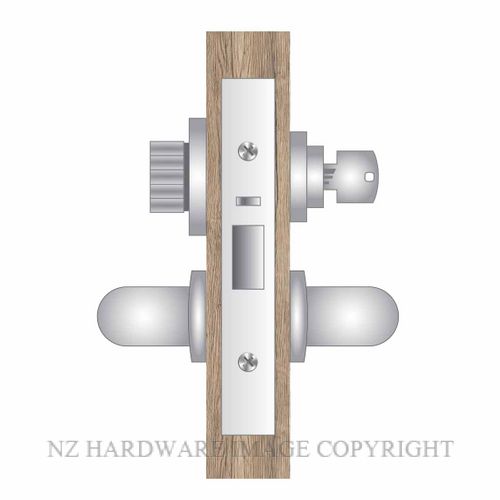

MNC5200RHSCK MNC5200RHSCK MILES NELSON MNC5200RHSCK KEY & TURN ANTI LOCKOUT VESTIBULE OR ENTRANCE LOCK 60MM RH SATIN STAINLESS
  • Unit:
    Set
  • Application:
    Anti-Lockout Lock
  • Function:
    Key & Turn Lockset
  • Product Options:
    Inside Handle Always Free For Egress
  • Finish:
    Satin Chrome
  • Door Type:
    Timber Doors Egress
  • Backset:
    60mm Standard
  • Door Thickness:
    35mm-55mm Doors
  • Fire Rated:
    Fire Rated
  • Returns Policy:
    20 Percent Surcharge
 Set Anti-Lockout Lock Key & Turn Lockset Inside Handle Always Free For Egress Satin Chrome Timber Doors Egress 60mm Standard 35mm-55mm Doors Fire Rated 20 Percent Surcharge 20 Percent Surcharge
Retail: $177.52 (exc GST)
Special: $152.66 (exc GST)
