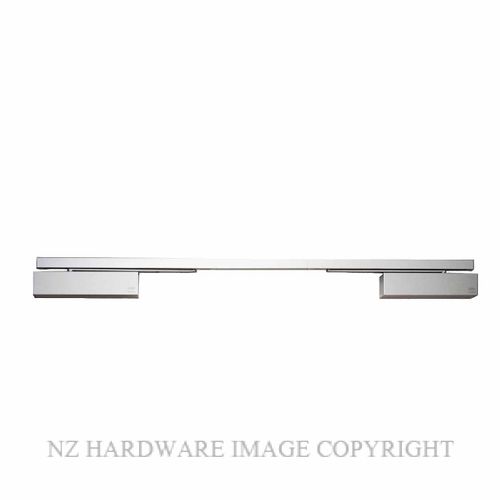

LOCKWOOD 2616EMCDSIL ELECTROMECHANICAL DOUBLE DOOR CLOSING SYSTEM SILVER

LOCKWOOD 2616EMCDSIL ELECTROMECHANICAL DOOR COORDINATOR UNIT
(SILVER)

The Lockwood 2616EMCD is a small,aesthetic fire door closing system with a sliding arm, one hold open device and the built-in coordinator for double doors. The applications for the 2616EMCD include hotels and hospital corridors, where both door leafs are usually kept open. The Lockwood 2616EMCD is designed for double doors with hinge distance 1250-2800 mm and maximum door leaf weight 120 kg. CE certified according to EN1155 and EN1158. Functions In normal day use both doors are open. The hold open angle for inactive door can be adjusted 70-130 degrees. The hold open device keeps the inactive door open whereas the coordinator keeps the active door open. The maximum hold angle for the active door is 130°. When the power is switched off, i.e. when the smoke detectors react to smoke, the inactive door closes first and when it is almost closed, the active door starts to close. Hold open device includes adjustable hold open force. Current consumption 60mA (24 VDC). Easy to install on narrow frames (40mm) • One unit suits both push side or pull side • Push side application add 1 x FD2616-117SIL angle bracket 2 x FD2616-116SIL angle brackets If you require assistance with your selection please contact us either by email or phone.
	Supplied With Fixings
	Minimum Double Door Widths - 1250mm Maximum Double Door Widths - 2800mm
	FOR RELATED PRODUCTS REFER BOTTOM OF PAGE CLICK TO VIEW ALL SATIN CHROME & SILVER PRODUCTS

Downloads

Code	Supplier Part Number	Image	Name	Unit	Application	Function	Product Features	Finish	Door Type	Width	Capacity	Strength	Fire Rated	Returns Policy	Privacy Policy	Price	Quantity
LW2616EMCDSIL	2616EMCDSIL		LOCKWOOD 2616EMCDSIL ELECTROMECHANICAL DOUBLE DOOR CLOSING SYSTEM SILVER Unit: Set Application: Internal Door Function: Fire,Lift Lobby,Smoke Control Door,Stairwell Door,Corridor Door Product Features: 1 Door Electronic Hold Open Finish: Silver Door Type: Double Doors Width: Door Widths 1250mm-2800mm Capacity: 3 - High Usage Strength: 1 to 6 Fire Rated: Fire Rated Returns Policy: 20 Percent Surcharge	Set	Internal Door	Fire,Lift Lobby,Smoke Control Door,Stairwell Door,Corridor Door	1 Door Electronic Hold Open	Silver	Double Doors	Door Widths 1250mm-2800mm	3 - High Usage	1 to 6	Fire Rated	20 Percent Surcharge	20 Percent Surcharge	$5,402.33 (exc GST)	Quantity:
