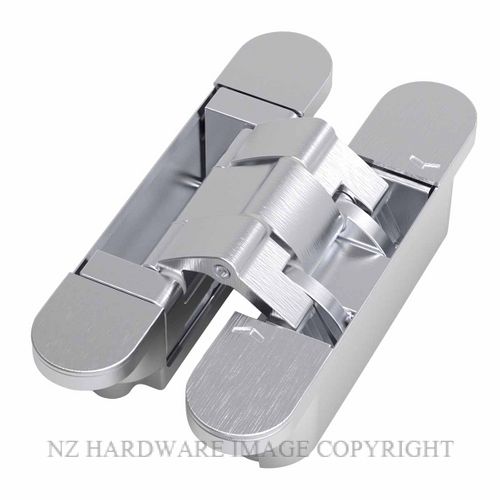

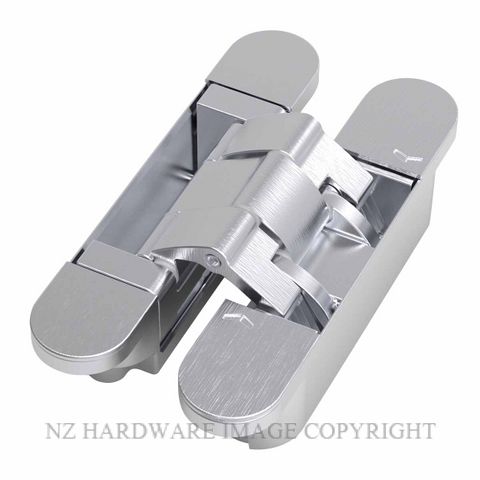

WINDSOR 9812 SS INVISIBLE HINGE - NEO M-6 SATIN STAINLESS

WINDSOR BRASS 9812 SS NEO M-5 CONCEALED HINGES (SATIN STAINLESS)

Taking minimalism andclean lines to a new level. The ARLU range of Invisible and Pivot Hinges offer new concealed opening and closing systems. Invisible Hinges are completely unseen when the door is closed and an architecturally designed look when the door is open. If you require assistance with your selection please contact us either by email or phone.
	Supplied With Fixings
	Concealed Hinges
	Hinge Height - 140mm Hinge Width - 28mm Minimum Door Thickness - 36mm Maximum Door Weight - 100kg Overall Depth Frame - 30mm Overall Depth Door - 30mm Door Width - 730mm - 2 Hinges 95kg - 3 Hinges 155kg Door Width - 830mm - 2 Hinges 90kg - 3 Hinges 110kg Door Width - 930mm - 2 Hinges 85kg - 3 Hinges 105kg Door Width - 1030mm - 2 Hinges 80kg - 3 Hinges 100kg
	Available Finishes - Antique Bronze - Matt Black - Polished Brass - Satin Stainless FOR RELATED PRODUCTS REFER BOTTOM OF PAGE CLICK TO VIEW ALL STAINLESS STEEL PRODUCTS

Downloads

Code	Supplier Part Number	Image	Name	Unit	Finish	Width	Height	Capacity	Price	Quantity
WB9812 SS	9812-SS		WINDSOR 9812 SS INVISIBLE HINGE - NEO M-6 SATIN STAINLESS Unit: Each Finish: Stainless (Satin 304) Width: 28mm Height: 140mm Capacity: 100kg	Each	Stainless (Satin 304)	28mm	140mm	100kg	Retail: $347.62 (exc GST) Special: $326.76 (exc GST)	Quantity:
