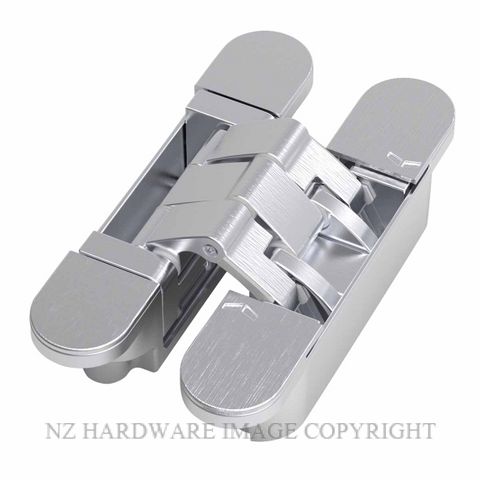

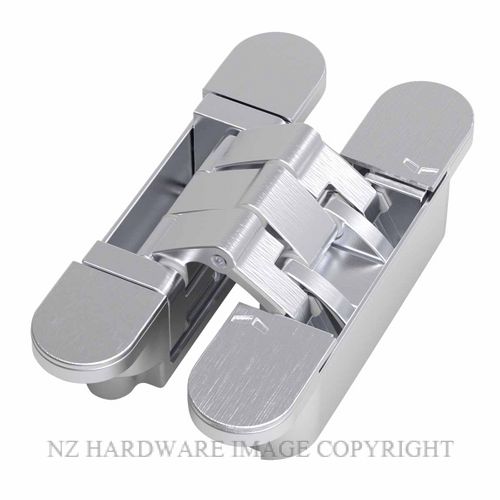

WINDSOR 9811 SS INVISIBLE HINGE - NEO S-5 SATIN STAINLESS

WINDSOR 9811 SS NEO S-5 CONCEALED HINGES (SATIN STAINLESS)

Taking minimalism andclean lines to a new level. The ARLU range of Invisible and Pivot Hinges offer new concealed opening and closing systems. Invisible Hinges are completely unseen when the door is closed and an architecturally designed look when the door is open. If you require assistance with your selection please contact us either by email or phone.
	Supplied With Fixings
	Concealed Hinges
	Hinge Height - 120mm Hinge Width - 25mm Minimum Door Thickness - 33mm Maximum Door Weight - 80kg Overall Depth Frame - 26.5mm Overall Depth Door - 30mm Door Width - 730mm - 2 Hinges 75kg - 3 Hinges 95kg Door Width - 830mm - 2 Hinges 70kg - 3 Hinges 90kg Door Width - 930mm - 2 Hinges 65kg - 3 Hinges 85kg Door Width - 1030mm - 2 Hinges 60kg - 3 Hinges 80kg
	Available Finishes - Antique Bronze - Matt Black - Polished Brass - Satin Stainless FOR RELATED PRODUCTS REFER BOTTOM OF PAGE CLICK TO VIEW ALL STAINLESS STEEL PRODUCTS

Downloads

Code	Supplier Part Number	Image	Name	Unit	Finish	Width	Height	Capacity	Price	Quantity
WB9811 SS	9811-SS		WINDSOR 9811 SS INVISIBLE HINGE - NEO S-5 SATIN STAINLESS Unit: Each Finish: Stainless (Satin 304) Width: 25mm Height: 120mm Capacity: 80kg	Each	Stainless (Satin 304)	25mm	120mm	80kg	Retail: $285.64 (exc GST) Special: $268.50 (exc GST)	Quantity:
