LOCKWOOD 9800 TRANSOM DOOR CLOSER SERIES

LOCKWOOD 9800 SERIES TRANSOM DOOR CLOSERS

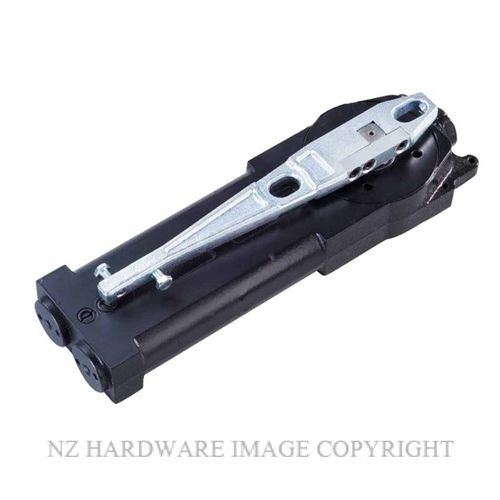

Lockwood 9800 Series Concealed Overhead Transom Door Closers

Transom Door Closers provide a solution for applications where door control must be provided without disturbing the appearance of the door.
The closer fits into the transom above the door, most of the preparatory work is undertaken prior to installation, leaving minimal on-site fitting.
Fully concealed door closers are designed to provide positive centering and door control on manually operated single or double action internal and external doors in schools, hospitals,clubs, factories, offices and commercial buildings.
Features
• Suitable for fire, metal, timber and glass doors
• Maximum door weight 115kgs
• Minimum door thickness 38mm
• Suitable for both single and double action doors
• Adjustable closing and latching speeds
• Closing from 130° to 15°, latching from 15° to 0°
• All models feature easy to install side load design
• Maximum door opening angle of 130°
• Mechanical hold-open at 90° & 105°
• Built in back check from approximately 80°
• Fully adjustable, vertically within opening & central parking positions
• 70mm pivot point
Specifications
• High grade cast iron body.
• Internal mechanism components utilising heat treated high alloy steels and ball bearings for optimum efficiency
• Stable hydraulic oil for a wide range of climatic conditions enabling constant operation
• Built in pressure release valve protects closer from rough use
• Compact body size fits into 44.5mm x 100mm header section
Lockwood OTC series hydraulic door closers have been successfully tested on fire door assemblies
in accordance with Australian Standard AS 1905 Part 1, 1997 Fire Resistant Doorsets.

If you require assistance with your selection please contact us either by email or phone.

Supplied With Fixings
The Lockwood Transom Closers come complete with the Transom closer body,Top Pivot Arm Kit and SP985-15 Bottom Pivot Kitset As Standard

Minimum Door Thickness - 38mm
Maximum Door Weight - 115kg
Non Fire Rated

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Downloads

lockwood concealed overhead transom closers catalogue.pdf

Code	Supplier Part Number	Name	Unit	Product Features	Door Type	Door Thickness	Strength	Returns Policy	Privacy Policy	Price	Quantity
LW9852H105	L9852H105	LOCKWOOD L9852H105 TRANSOM CLOSER HOLD OPEN 105DEG Unit: Kitset Product Features: Hold Open 105 Deg Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 2 Returns Policy: 20 Percent Surcharge	Kitset	Hold Open 105 Deg	Aluminium Doors,Timber Doors	38mm Minimum	2	20 Percent Surcharge	20 Percent Surcharge	$438.11 (exc GST)	Quantity:
LW9852H90	L9852H90	LOCKWOOD L9852H90 TRANSOM CLOSER HOLD OPEN 90DEG Unit: Kitset Product Features: Hold Open 90 Deg Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 2 Returns Policy: 20 Percent Surcharge	Kitset	Hold Open 90 Deg	Aluminium Doors,Timber Doors	38mm Minimum	2	20 Percent Surcharge	20 Percent Surcharge	$438.11 (exc GST)	Quantity:
LW9852N	L9852N	LOCKWOOD L9852N TRANSOM CLOSER NON HOLD OPEN Unit: Kitset Product Features: Non Hold Open Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 2 Returns Policy: 20 Percent Surcharge	Kitset	Non Hold Open	Aluminium Doors,Timber Doors	38mm Minimum	2	20 Percent Surcharge	20 Percent Surcharge	$438.11 (exc GST)	Quantity:
LW9853BCN	L9853BCN	LOCKWOOD L9853BCN TRANSOM CLOSER WITH BACKCHECK Unit: Kitset Product Features: Non Hold Open Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 3 Returns Policy: 20 Percent Surcharge	Kitset	Non Hold Open	Aluminium Doors,Timber Doors	38mm Minimum	3	20 Percent Surcharge	20 Percent Surcharge	$719.20 (exc GST)	Quantity:
LW9853H105	L9853H105	LOCKWOOD L9853H105 TRANSOM CLOSER HOLD OPEN 105DEG Unit: Kitset Product Features: Hold Open 105 Deg Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 3 Returns Policy: 20 Percent Surcharge	Kitset	Hold Open 105 Deg	Aluminium Doors,Timber Doors	38mm Minimum	3	20 Percent Surcharge	20 Percent Surcharge	$438.11 (exc GST)	Quantity:
LW9853H90	L9853H90	LOCKWOOD L9853H90 TRANSOM CLOSER HOLD OPEN 90DEG Unit: Kitset Product Features: Hold Open 90 Deg Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 3 Returns Policy: 20 Percent Surcharge	Kitset	Hold Open 90 Deg	Aluminium Doors,Timber Doors	38mm Minimum	3	20 Percent Surcharge	20 Percent Surcharge	$438.11 (exc GST)	Quantity:
LW9853N	L9853N	LOCKWOOD L9853N TRANSOM CLOSER NON HOLD OPEN Unit: Kitset Product Features: Non Hold Open Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 3 Returns Policy: 20 Percent Surcharge	Kitset	Non Hold Open	Aluminium Doors,Timber Doors	38mm Minimum	3	20 Percent Surcharge	20 Percent Surcharge	$438.11 (exc GST)	Quantity:
LW9854BCN	9854BCN	LOCKWOOD L9853BCN TRANSOM CLOSER WITH BACKCHECK Unit: Kitset Product Features: Non Hold Open Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 4 Returns Policy: 20 Percent Surcharge	Kitset	Non Hold Open	Aluminium Doors,Timber Doors	38mm Minimum	4	20 Percent Surcharge	20 Percent Surcharge	$698.24 (exc GST)	Quantity:
LW9854H105	L9854H105	LOCKWOOD L9854H105 TRANSOM CLOSER HOLD OPEN 105DEG Unit: Kitset Product Features: Hold Open 105 Deg Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 4 Returns Policy: 20 Percent Surcharge	Kitset	Hold Open 105 Deg	Aluminium Doors,Timber Doors	38mm Minimum	4	20 Percent Surcharge	20 Percent Surcharge	$438.11 (exc GST)	Quantity:
LW9854H90	L9854H90	LOCKWOOD L9854H90 TRANSOM CLOSER HOLD OPEN 90DEG Unit: Kitset Product Features: Hold Open 90 Deg Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 4 Returns Policy: 20 Percent Surcharge	Kitset	Hold Open 90 Deg	Aluminium Doors,Timber Doors	38mm Minimum	4	20 Percent Surcharge	20 Percent Surcharge	$438.11 (exc GST)	Quantity:
LW9854N	L9854N	LOCKWOOD L9854N TRANSOM CLOSER NON HOLD OPEN Unit: Kitset Product Features: Non Hold Open Door Type: Aluminium Doors,Timber Doors Door Thickness: 38mm Minimum Strength: 4 Returns Policy: 20 Percent Surcharge	Kitset	Non Hold Open	Aluminium Doors,Timber Doors	38mm Minimum	4	20 Percent Surcharge	20 Percent Surcharge	$438.11 (exc GST)	Quantity:
