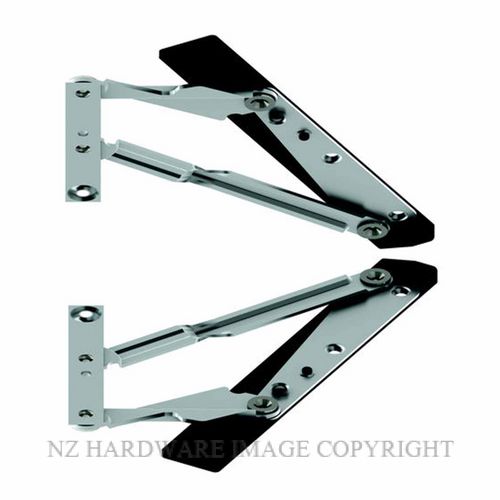

INTERLOCK P1090 MODEL 230 4BC NF NON FRICTION HINGES

SUPPLIER CODES - P1090NF - 230 4BC NF

A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projecting side hung (PSH) aluminium, timber or uPVC sashes. Manufactured from 304 grade austenitic (non-magnetic) stainless steel, the range caters for the sizes and weights of sashes normally associated with residential or light commercial applications.

Features
• A comprehensive range to cater for most applications
• Non-handed
• Manufactured with the unique “pull-in” feature
• No sliding channels
• Factory set friction levels thus no on-site adjustment necessary
• New Zealand made
Options
• Available in four sizes, designated by the frame plate length, catering for sashes weighing up to 40kg. The selection of which is determined by the sash weight and height
(refer chart below)
• Non-friction model for use with window control
mechanisms.

If you require assistance with your selection please contact us either by email or phone.

Fire.pngNo Fixings Supplied
Dimension (A) - 106mm
Dimension (B) - 90mm
Dimension (C) - NA
Dimension (D) - 80mm
Dimension (E) - 8mm
Dimension (F) - NA
Dimension (G) - 236mm
Dimension (H) - 125mm
Dimension (I) -  18.9mm
Dimension (J) - NA
Dimension (K) - 55mm
Dimension (L) - 34mm
Dimension (M) - 65mm
Dimension (N) - 201mm

Function.pngMaximum Sash Height - NA
Maximum Sash Weight - 25KG
Non Friction Stay For Use With Window Control Mechanisms
Opening Angle - 90 Degree
Made From - Stainless Steel 304 Grade

Finish - Stainless

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Code Supplier Part Number Image Name Unit Application Function Product Features Finish Overall Length Capacity Returns Policy Privacy Policy Price Quantity
INTP1090NF P1090NF INTERLOCK P1090NF MODEL 230 4BCNF NON FRICTION HINGES STAINLESS
  • Unit:
    Pair
  • Application:
    Projected Side Hung Sashes (PSH)
  • Function:
    Opening Angle 90 Degree
  • Product Features:
    Non Friction Stay
  • Finish:
    Stainless
  • Overall Length:
    236mm
  • Capacity:
    Max Weight 25KG
  • Returns Policy:
    20 Percent Surcharge
Pair Projected Side Hung Sashes (PSH) Opening Angle 90 Degree Non Friction Stay Stainless 236mm Max Weight 25KG 20 Percent Surcharge 20 Percent Surcharge
$66.61 (exc GST)
