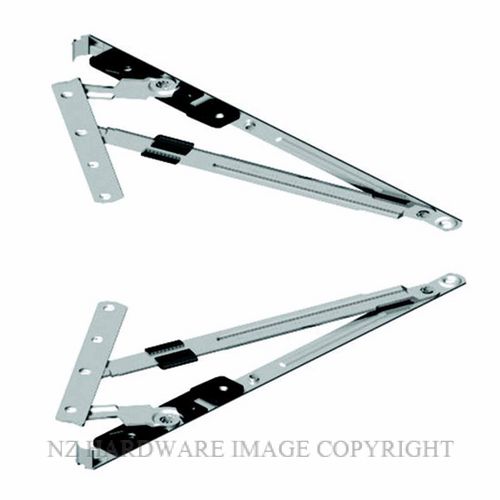

 INTERLOCK P1080 MODEL 430 4BC FRICTION HINGES

OBSOLETE CODES - P1022 - 450 6BC
REPLACEMENT CODES - P1080 - 430 4BC

A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projecting side hung (PSH) aluminium, timber or uPVC sashes. Manufactured from 304 grade austenitic (non-magnetic) stainless steel, the range caters for the sizes and weights of sashes normally associated with residential or light commercial applications.
Features
• A comprehensive range to cater for most applications
• Non-handed
• Manufactured with the unique “pull-in” feature
• No sliding channels
• Factory set friction levels thus no on-site adjustment necessary
• New Zealand made
Options
• Available in four sizes, designated by the frame plate length, catering for sashes weighing up to 40kg. The selection of which is determined by the sash weight and height
(refer chart below)
• Non-friction model for use with window control
mechanisms.

If you require assistance with your selection please contact us either by email or phone.

Fire.pngNo Fixings Supplied
Dimension (A) - 193mm
Dimension (B) - 160mm
Dimension (C) - 110mm
Dimension (D) - 60mm
Dimension (E) - NA
Dimension (F) - NA
Dimension (G) - 420mm
Dimension (H) - 285.7mm
Dimension (I) -  60mm
Dimension (J) - 50mm
Dimension (K) - 57mm
Dimension (L) - NA
Dimension (M) - NA
Dimension (N) - 310mm

Function.pngMaximum Sash Height - 1000mm
Maximum Sash Weight - 40KG
Full Friction Stay
Opening Angle - 90 Degree
Made From - Stainless Steel 304 Grade

Finish - Stainless

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Code Supplier Part Number Image Name Unit Application Function Product Features Finish Overall Length Width Capacity Returns Policy Privacy Policy Price Quantity
INTP1080 P1080 INTERLOCK P1080 MODEL 430 4BC FRICTION HINGES STAINLESS
  • Unit:
    Pair
  • Application:
    Projected Side Hung Sashes (PSH)
  • Function:
    Opening Angle 90 Degree
  • Product Features:
    Full Friction Stay
  • Finish:
    Stainless
  • Overall Length:
    420mm
  • Width:
    Max Sash Width 1000mm
  • Capacity:
    Max Weight 40KG
  • Returns Policy:
    20 Percent Surcharge
Pair Projected Side Hung Sashes (PSH) Opening Angle 90 Degree Full Friction Stay Stainless 420mm Max Sash Width 1000mm Max Weight 40KG 20 Percent Surcharge 20 Percent Surcharge
$109.60 (exc GST)
