LOCKWOOD 3574 PASSAGE LATCH 60MM SATIN CHROME

	Fire Rated
	Onsite Swapable Handing
	Suitable For Door Thickness 32 - 50mm
	Weather Proof
	10 Year Warranty

LOCKWOOD 3574 PASSAGE LATCH

PRODUCT DESCRIPTION

A wide range of security cylinder mortice locks and latches suitable for heavy duty use in industrial and commercial buildings, institutions, clubs, schools, hospitals, hotels and similar buildings

Latchbolts
Latchbolts are 15mm, stainless steel. Deadlatching is achieved by an auxiliary stainless steel latchbolt. This auxiliary bolt retracts when the main latchbolt is withdrawn when the door is closed.

Included in this kitset is the Lockwood 3572 primary lock body - face plate - strike & fixing screws.

Case and Cover Plates

High purity zinc alloy material cases and stainless steel cover plates •

Brass plates provided for plated finishes available

Backset - 60mm

Finish - Satin Chrome

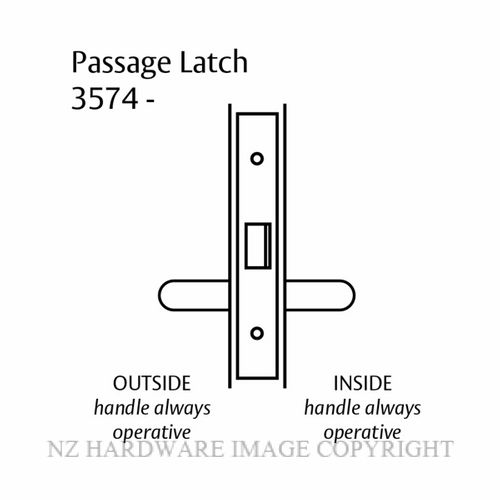

PRODUCT OPERATION
OUTSIDE	INSIDE
handle always operative	handle always operative

Downloadable Files

Downloads

Code	Supplier Part Number	Image	Name	Unit	Function	Product Options	Finish	Door Type	Backset	Door Thickness	Fire Rated	Returns Policy	Privacy Policy	Price	Quantity
LW3574 SC			LOCKWOOD 3574 PASSAGE LATCH 60MM SATIN CHROME Unit: Kitset Function: Passage Latch Product Options: Both Handles Locked Or Unlocked Finish: Satin Chrome Door Type: Timber Doors Non Egress Backset: 60mm Standard Door Thickness: 32mm-50mm Doors Fire Rated: Fire Rated Returns Policy: 20 Percent Surcharge	Kitset	Passage Latch	Both Handles Locked Or Unlocked	Satin Chrome	Timber Doors Non Egress	60mm Standard	32mm-50mm Doors	Fire Rated	20 Percent Surcharge	20 Percent Surcharge	$148.13 (exc GST)	Quantity:
