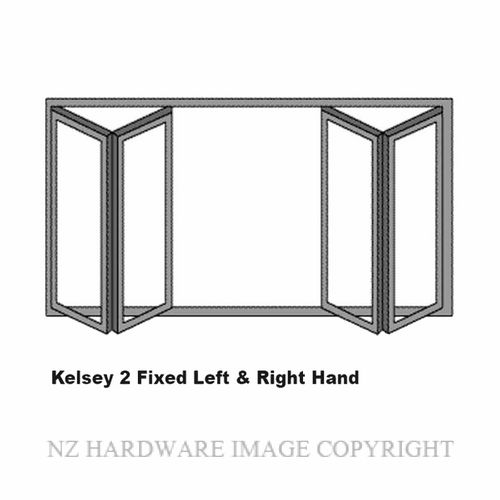

DRAKE & WRIGLEY KELSEY 2 FIXED LEFT HAND 2 FIXED RIGHT HAND

Supplied With Timber Fixings

DRAKE & WRIGLEY KELSEY FOLDING WINDOW TRACK

2 LEFT HAND & 2 RIGHT HAND FIXED WINDOWS

SPECIFICATIONS

MAXIMUM PANEL WEIGHT

40kg

PRODUCT DESCRIPTION

The Kelsey System is manufactured from brass components and is used for windows. Kelsey bi-folds were introduced in 1938 and are still popular today, proving their design longevity. These types of systems allow unlimited window openings, and a broad range of designs are available to bring the outdoors into interior environments

Provides maximum view and ventilation
Full weather and draft proof.
Easy operation
Durable with 50 years proven time record
Suitable for commercial, industrial and domestic applications
Extrusions, fittings and sets are available for use with timber Joinery
Maximum window height 1800mm
Maximum window sash width 500mm
Maximum sash weight per 40kgs
Gives 90% clear opening and full vision access
Wind tested (passed rating tests)
Telarc approved
Space age plastic rollers self lube, no noise
Can be used in salt water environments
windows need not be hinged at the jamb. They can float freely to either side of the opening
Drainage is self draining
Guaranteed
Enhances resale value of property
Manufactured of - Brass

FOR RELATED PRODUCTS REFER BELOW

COMPONENTS REQUIRED
ITEM NO	QUANTITY
DW4520L TOP ROLLER	1
DW4520R TOP ROLLER	1
DW4518L BOTTOM GUIDE	1
DW4518R BOTTOM GUIDE	1
DW4508 HINGE HANDLE	2
DW4506 LOOSE PIN HINGES	2
DW4506 FIXED PIN HINGES	4
DW4515LH PIVOT COVER	1
DW4515RH PIVOT COVER	1
DW4106 SPRING CATCH	2
BOTTOM GUIDE TRACK	1
