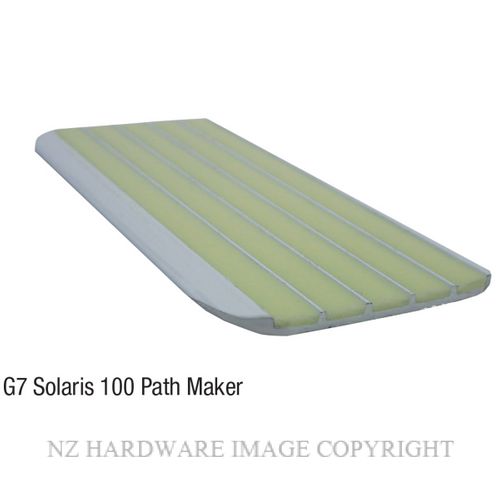

PRODUCT DESCRIPTION

The G7 Solaris 100 is designed to ensure visibility of pathways in escape routes to meet NZBC Clause F6 ‘Visibility in Escape Routes’.


The G7 Solaris 100 will be effective in all light conditions including during failure of the main lighting.


PERFORMANCE
Independently tested in accordance with UL1994 for 10 metre visibility to meet NZBC Clause F6.


Risk Group C Building
30 minutes visibility Minimum charging illuminance of 20 lux continuously during occupancy.


Risk Group B Building
90 minutes visibility Minimum charging illuminance of 60 lux continuously during occupancy.

The G7 Solaris 100 is suitable for use indoors and outdoors.


UV Resistance
Loss of luminance after 1000 hrs ASTM G-155 Cycle 1 exposure: <10%


SUPPLY
The product is available in a pack of 10 x 100mm pieces.


COMPOSITION
Ecoglo G7 Solaris 100 is manufactured from extruded 6060T5 aluminium section. Custom made photoluminescent
pigment is embedded in thermoset polyester carriers to integrally bond the active ingredients into the aluminium
following curing at high temperature. The photoluminescent area is also recessed into protective channels.


INSTALLATION
Installation is a simple process using polyurethane adhesive, screws or pre-fitted release tape.
Fixers (screws) or release tape can be used if adhesion is difficult.

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Overall Length Width Mounting Returns Policy Privacy Policy Price Quantity
ECG7-100 G7-100 ECOGLO ECG7-100 G7 SOLARIS - 100MM
  • Unit:
    Each
  • Overall Length:
    100mm
  • Width:
    50mm
  • Mounting:
    Glue Fix
  • Returns Policy:
    Non Returnable Item
 Each 100mm 50mm Glue Fix Non Returnable Item Non Returnable Item
$4.16 (exc GST)
ECG7P-100 G7P-100 ECOGLO ECG7P-100 G7 SOLARIS - 100MM PUNCHED WITH FIXERS
  • Unit:
    Each
  • Overall Length:
    100mm
  • Width:
    50mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 100mm 50mm Screw Fix Non Returnable Item Non Returnable Item
$5.20 (exc GST)
ECG7T-100 G7T-100 ECOGLO ECG7T-100 G7 SOLARIS - 100MM WITH FOAM TAPE
  • Unit:
    Each
  • Overall Length:
    100mm
  • Width:
    50mm
  • Mounting:
    Self Adhesive
  • Returns Policy:
    Non Returnable Item
 Each 100mm 50mm Self Adhesive Non Returnable Item Non Returnable Item
$5.20 (exc GST)
