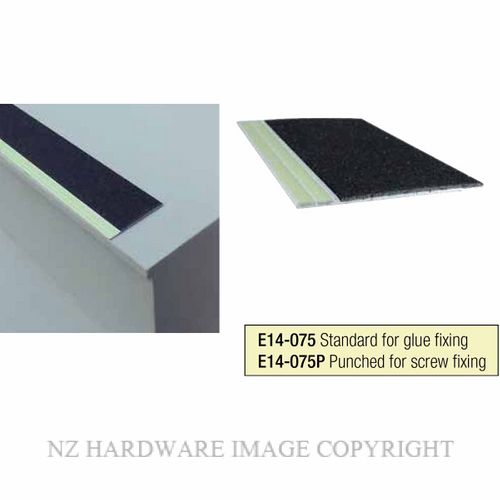

ECOGLO ECE14-075 STEP EDGE CONTRAST STRIP (GLUE FIX)

The E14-075 is designed to ensure visibility of steps in escape routes to meet NZBC Clause F6 “Visibility in Escape Routes”. The step edge contrast will be effective in all light conditions including during failure of the main lighting.

PERFORMANCE

Independently tested in accordance with UL 1994 for 10 metre visibility to meet NZBC Clause F6.

Risk Group C Building

30 minutes visibility Minimum charging illuminance of 20 lux continuously during occupancy.

Risk Group B Building

90 minutes visibility Minimum charging illuminance of 60 lux continuously during occupancy.

The step edge contrast is suitable for use indoors and outdoors.

The anti-slip material provides all weather protection from slips and falls. Anti-slip Properties AS/NZS 4586-2004 Classification: FV

UV Resistance

Loss of luminance after 1000 hrs ASTM G-155 Cycle 1 exposure: <10%

SUPPLY

The products are available in lengths of 100mm increments from 600mm to 1500mm to comply with IBC recommendations to mark the escape path on the front edge of the step to within 50mm of the wall or the side of the step.

COMPOSITION

Ecoglo E14-075 Step Edge Contrast is manufactured from extruded 6060T5 aluminium section. Silicon Carbide anti-slip materials and custom made photoluminescent pigment are embedded in thermoset polyester carriers to integrally bond the active ingredients into the aluminium following curing at high temperature. The photoluminescent area is also recessed into protective channels.

INSTALLATION

Indoors the E14-075 can be surface mounted on all smooth surfaces. Outdoors the E14-075 can be surface mounted onto concrete. Installation is a simple process using polyurethane adhesive. Maximum recommended length for outdoor installation is 1500mm. Screws can be used if adhesion is difficult.

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Overall Length Width Mounting Returns Policy Privacy Policy Price Quantity
ECE14-075-800 E14-075-800 ECOGLO ECE14-075-800 STEP EDGE CONTRAST 64MM - 800MM
  • Unit:
    Each
  • Overall Length:
    800mm
  • Width:
    63.6mm
  • Mounting:
    Glue Fix
  • Returns Policy:
    Non Returnable Item
 Each 800mm 63.6mm Glue Fix Non Returnable Item Non Returnable Item
$16.64 (exc GST)
ECE14-075-900 E14-075-900 ECOGLO ECE14-075-900 STEP EDGE CONTRAST 64MM - 900MM
  • Unit:
    Each
  • Overall Length:
    900mm
  • Width:
    63.6mm
  • Mounting:
    Glue Fix
  • Returns Policy:
    Non Returnable Item
 Each 900mm 63.6mm Glue Fix Non Returnable Item Non Returnable Item
$19.23 (exc GST)
ECE14-075-1000 E14-075-1000 ECOGLO ECE14-075-1000 STEP EDGE CONTRAST 64MM - 1000MM
  • Unit:
    Each
  • Overall Length:
    1000mm
  • Width:
    63.6mm
  • Mounting:
    Glue Fix
  • Returns Policy:
    Non Returnable Item
 Each 1000mm 63.6mm Glue Fix Non Returnable Item Non Returnable Item
$20.80 (exc GST)
ECE14-075-1100 E14-075-1100 ECOGLO ECE14-075-1100 STEP EDGE CONTRAST 64MM - 1100MM
  • Unit:
    Each
  • Overall Length:
    1100mm
  • Width:
    63.6mm
  • Mounting:
    Glue Fix
  • Returns Policy:
    Non Returnable Item
 Each 1100mm 63.6mm Glue Fix Non Returnable Item Non Returnable Item
$23.92 (exc GST)
ECE14-075-1200 E14-075-1200 ECOGLO ECE14-075-1200 STEP EDGE CONTRAST 64MM - 1200MM
  • Unit:
    Each
  • Overall Length:
    1200mm
  • Width:
    63.6mm
  • Mounting:
    Glue Fix
  • Returns Policy:
    Non Returnable Item
 Each 1200mm 63.6mm Glue Fix Non Returnable Item Non Returnable Item
$24.45 (exc GST)
ECE14-075-1300 E14-075-1300 ECOGLO ECE14-075-1300 STEP EDGE CONTRAST 64MM - 1300MM
  • Unit:
    Each
  • Overall Length:
    1300mm
  • Width:
    63.6mm
  • Mounting:
    Glue Fix
  • Returns Policy:
    Non Returnable Item
 Each 1300mm 63.6mm Glue Fix Non Returnable Item Non Returnable Item
$27.55 (exc GST)
ECE14-075-1400 E14-075-1400 ECOGLO ECE14-075-1400 STEP EDGE CONTRAST 64MM - 1400MM
  • Unit:
    Each
  • Overall Length:
    1400mm
  • Width:
    63.6mm
  • Mounting:
    Glue Fix
  • Returns Policy:
    Non Returnable Item
 Each 1400mm 63.6mm Glue Fix Non Returnable Item Non Returnable Item
$29.12 (exc GST)
ECE14-075-1500 E14-075-1500 ECOGLO ECE14-075-1500 STEP EDGE CONTRAST 64MM - 1500MM
  • Unit:
    Each
  • Overall Length:
    1500mm
  • Width:
    63.6mm
  • Mounting:
    Glue Fix
  • Returns Policy:
    Non Returnable Item
 Each 1500mm 63.6mm Glue Fix Non Returnable Item Non Returnable Item
$30.69 (exc GST)
