BRIO TIMBEROLL 300N 300KG SLIDING DOOR TRACKS

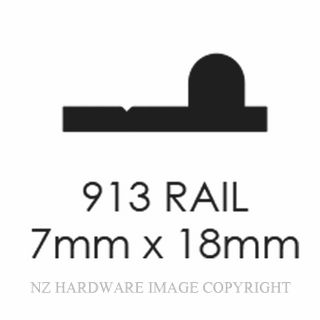

BRIO TIMBEROLL 300N BOTTOM ROLLER TRACK

APPLICATION

For timber and aluminium sliding panels, interior and exterior applications.

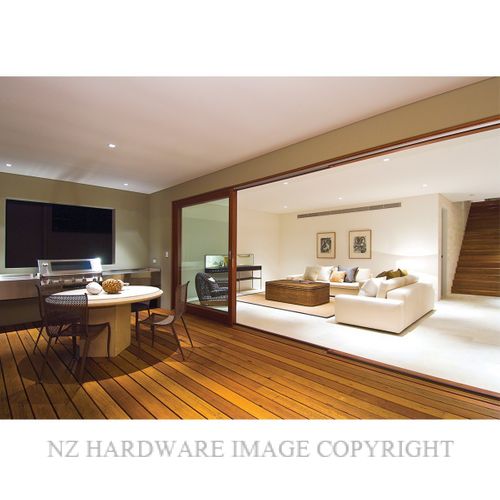

Designed for straight sliding partitions or fully glazed patio doors.
Also suitable for flush panelled construction.
The bottom roller design is suited to applications where the supporting structure or lintel is insufficient for the weight of the panel or where headroom is limited.
To cover the width of opening, any number of panels can be used on single or multiple lines of rail, panels can slide to one or both sides.

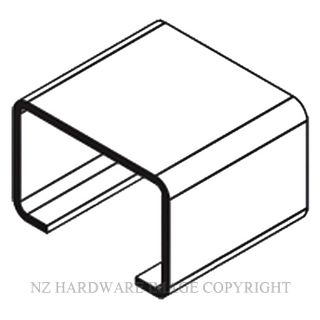

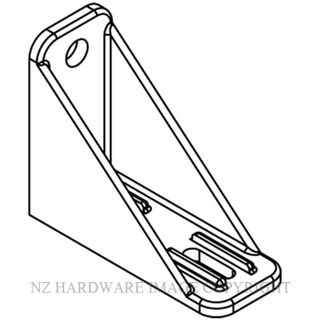

Where fitted externally, a canopy is recommended to protect the top guide channel, brackets and top guide rollers.

Panels must be constructed with bottom rails of at least 150mm depth to accommodate the concealed, mortised bottom rollers. Panel weight is carried on the floor permitting the use of a light overhead structure.

MAX PANEL HEIGHT	3000mm
MAX PANEL WEIGHT NYLON WHEEL	300kg
MINIMUM PANEL THICKNESS	40mm

PLEASE CONTACT US IF YOU REQUIRE FURTHER INFORMATION OR A QUOTATION FOR THIS PRODUCT.

Downloadable Files

Downloads

Code	Supplier Part Number	Image	Name	Unit	Application	Function	Door Type	Height	Door Thickness	Returns Policy	Privacy Policy	Price	Quantity
BI TR300N			BRIO TIMBEROLL 300N 300KG SLIDING DOOR TRACKS Unit: Each Application: Commercial Use Function: Building Exterior,Hallway-Room Dividing Door Type: Timber Interior,Timber Exterior Height: 3000mm Door Thickness: 40mm Returns Policy: Non Returnable	Each	Commercial Use	Building Exterior,Hallway-Room Dividing	Timber Interior,Timber Exterior	3000mm	40mm	Non Returnable	Non Returnable	$0.00 (exc GST)	Unavailable for Online Purchase, Contact Us
