RAVEN RP122 ASTRAGAL FIRE SEAL

RAVEN RP122 ASTRAGAL FIRE SEAL
Smoke.pngAmbient (cold) Smoke
Smoke.pngMedium Temp Smoke Proof
Sound.pngNoise - Acoustic
Function.pngLight Proof
Messure Volume.pngEnergy,Draught and Dust
Insect.pngInsects and Vermin
Fire.pngFire (approved) New Zealand NZS 4520 and NZ Building Code Compliance Document C.

RAVEN RP122 ASTRAGAL FIRE SEAL

PRODUCT DESCRIPTION

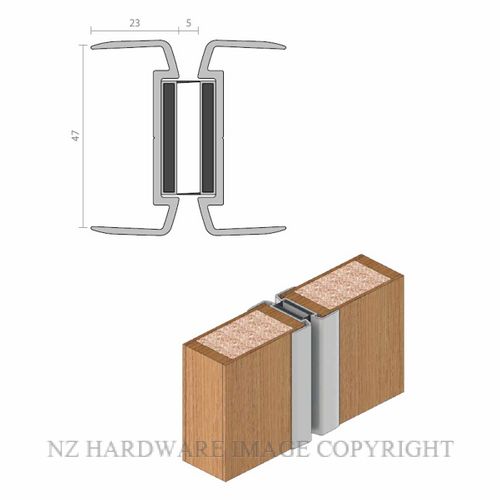

An effective fire, smoke and acoustic seal designed for double action fire doors. With concealed fixings, the RP122 is a twin section aluminium bullnose astragal seal with an intumescent infill and PVC fin smoke seal.

Location: Meeting stiles of pairs of 47mm nominal thickness double action fire doors.

Min/Max Gap: 13mm to 15mm (prior to installation).

Finish: Satin clear (silver) anodised aluminium (15µm).

Fixing: Concealed screw fix. Zinc plated, cross recess head CSK S.T. screws supplied. Self adhesive intumescent infill.

Seal: Light grey rigid PVC case with intumescent infill and PVC sealing fins.


Code Supplier Part Number Image Name Unit Application Function Finish Overall Length Returns Policy Privacy Policy Price Quantity
RP122 2135 CA A122C2135 RAVEN RP122 2135 CA ASTRAGAL FIRE SEAL CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Light,Insects And Vermin,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic
  • Function:
    Meeting Style Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    2.135 Metres
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Light,Insects And Vermin,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic Meeting Style Seals Clear Anodised 2.135 Metres Non Returnable Item Non Returnable Item
$341.79 (exc GST)
Unavailable for Online Purchase, Contact Us
RP122 2440 CA A122C2440 RAVEN RP122 2440 CA ASTRAGAL FIRE SEAL CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Light,Insects And Vermin,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic
  • Function:
    Meeting Style Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    2.44 Metres
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Light,Insects And Vermin,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic Meeting Style Seals Clear Anodised 2.44 Metres Non Returnable Item Non Returnable Item
$378.89 (exc GST)
Unavailable for Online Purchase, Contact Us
RP122 3050 CA A122C3050 RAVEN RP122 3050 CA ASTRAGAL FIRE SEAL CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Light,Insects And Vermin,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic
  • Function:
    Meeting Style Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    3.05 Metres
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Light,Insects And Vermin,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic Meeting Style Seals Clear Anodised 3.05 Metres Non Returnable Item Non Returnable Item
$472.88 (exc GST)
Unavailable for Online Purchase, Contact Us
