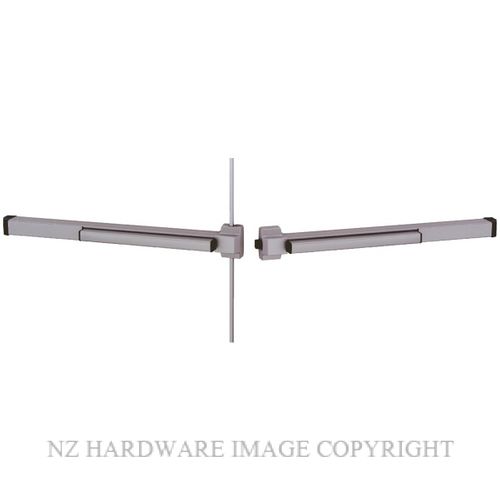

VON DUPRIN DR22 914 DBLE REBATED DOOR PANIC BOLT SET SILVER GREY

10 Year Warranty

DOOR HEIGHT	2134mm (extension rods available - see related products below)
MINIMUM DOOR OPENING	1510mm
DOOR THICKNESS	40mm to 57mm
MINIMUM STILE WIDTH	111mm
EACH DEVICE LENGTH	841mm
EACH DEVICE PROJECTION	95mm

PRODUCT DESCRIPTION

The Von Duprin 22 Series is a range of push pad exit devices designed to suit single and double door applications. The 22 Series can be used on metal or timber swinging commercial doors. Available as rim and surface mounted vertical rod devices, in 914mm and 1220mm models. The 22 Series is traditionally used in non-public areas such as warehouses, factories and side exits.

PRODUCT FEATURES

To suit double rebated doors
Field sizeable to accommodate a range of door openings
Optional extension rods available for doors over 2134mm high
The hex key dogging allows the latch to be held in a retracted position
Supplied with 248L-4, 299F and 304L strikes as standard
Optional outside trim and alarm kits are available

Downloadable Files

Downloads

Code	Supplier Part Number	Image	Name	Unit	Application	Function	Finish	Fire Rated	Returns Policy	Privacy Policy	Price	Quantity
VDDR22 914			VON DUPRIN DR22 914 DBLE REBATED DOOR PANIC BOLT SET SILVER GREY Unit: Kitset Application: Double Rebated Doors Function: 3 Point Locking Finish: Silver Grey Fire Rated: Non Fire Rated Returns Policy: 20 Percent Surcharge	Kitset	Double Rebated Doors	3 Point Locking	Silver Grey	Non Fire Rated	20 Percent Surcharge	20 Percent Surcharge	$2,734.88 (exc GST)	Quantity:
