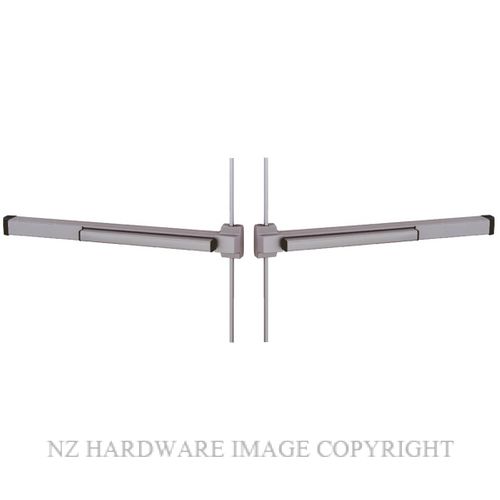

VON DUPRIN DD2227 914 DOUBLE DOOR PANIC BOLT SET SILVER GREY

10 Year Mechanical Warranty

DOOR HEIGHT	2134mm (extension rods available - see related products below)
MINIMUM DOOR OPENING	1315mm
DOOR THICKNESS	40mm to 57mm
MINIMUM STILE WIDTH	92mm
DEVICE LENGTH	841mm
DEVICE PROJECTION	95mm

PRODUCT DESCRIPTION

The Von Duprin 22 Series is a range of push pad exit devices designed to suit single and double door applications. The 22 Series can be used on metal or timber swinging commercial doors. Available as rim and surface mounted vertical rod devices, in 914mm and 1220mm models. The 22 Series is traditionally used in non-public areas such as warehouses, factories and side exits.

PRODUCT FEATURES

To suit double non-rebated doors
Fits door stiles as narrow as 92mm
Field sizeable to accommodate a range of door openings
Optional extension rods available for door over 2134mm high
Multi-point locking device, with 16mm throw deadlocking anti-friction top and bottom latch
The hex key dogging allows the latch to be held in a retracted position
Suppled with 248L-4, 299 and 304L strikes as standard
Optional outside trim and alarm kits are available

Downloadable Files

Downloads

Code	Supplier Part Number	Image	Name	Unit	Application	Function	Finish	Fire Rated	Returns Policy	Privacy Policy	Price	Quantity
VDDD2227 914			VON DUPRIN DD2227 914 DOUBLE DOOR PANIC BOLT SET SILVER GREY Unit: Kitset Application: Double Non Rebated Doors Function: 4 Point Locking Finish: Silver Grey Fire Rated: Non Fire Rated Returns Policy: 20 Percent Surcharge	Kitset	Double Non Rebated Doors	4 Point Locking	Silver Grey	Non Fire Rated	20 Percent Surcharge	20 Percent Surcharge	$3,416.49 (exc GST)	Quantity:
