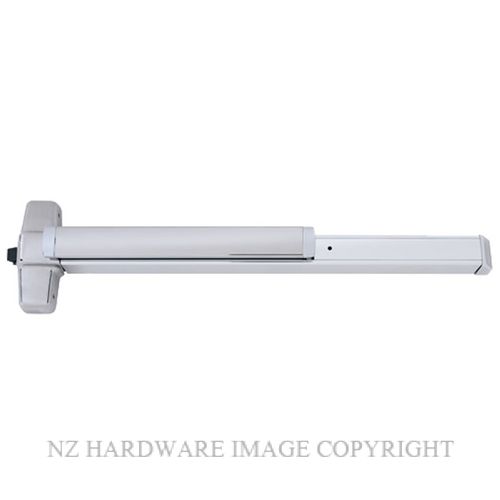

VON DUPRIN 99EO 914MM SL PANIC BOLT SATIN CHROME

VON DUPRIN 99EO 914MM SL PANIC BOLT SATIN CHROME
 warranty-1.png 10 Year Mechanical Warranty



MINIMUM DOOR WIDTH EACH LEAF 711mm
DOOR THICKNESS SURFACE MOUNT 19mm Minimum
DOOR THICKNESS BOLT THROUGH 44mm to 57mm
MINIMUM STILE WIDTH 111mm
DEVICE LENGTH 838mm
DEVICE PROJECTION 97mm

PRODUCT DESCRIPTION
The Von Duprin 99 Series is a contemporary range of push pad exit devices designed to suit heavy commercial single and double door applications. The 99 Series can be used on timber, aluminium or hollow metal hinged doors. Available in rim, surface mounted vertical rod and concealed vertical rod devices.
Furnished on all 99 Series exit devices is a fluid dampener that decelerates the push pad on its return stroke and eliminates most noise associated with exit device operation.
The 99 Series, with it’s upmarket design, is specifically used in public areas such as main entrances, front of house exits, auditoriums and main foyer areas.

PRODUCT FEATURES
  •    Non-handed
  • • Field sizeable to accommodate a range of door openings
  • • Rim device has deadlocking latch with 19mm throw
  • • Vertical rod device has deadlocking anti-friction latch with 16mm throw
  • • Available in 914mm and 1220mm lengths to suit a range of door openings
  • • 'F' models are fire rated and have no dogging feature
  • • Optional external trims available for key access
  • • Optional alarm kit available to deter unauthorised use of an opening
  • • The 10 year warranty provides specifiers and users with assured quality and performance



Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Application Function Finish Fire Rated Returns Policy Privacy Policy Price Quantity
VD99EO 914 VDD11568 VON DUPRIN 99EO 914MM SL PANIC BOLT SATIN CHROME
  • Unit:
    Each
  • Application:
    Single Doors
  • Function:
    1 Point Locking
  • Finish:
    Satin Chrome
  • Fire Rated:
    Non Fire Rated
  • Returns Policy:
    20 Percent Surcharge
 Each Single Doors 1 Point Locking Satin Chrome Non Fire Rated 20 Percent Surcharge 20 Percent Surcharge
$1,312.74 (exc GST)
