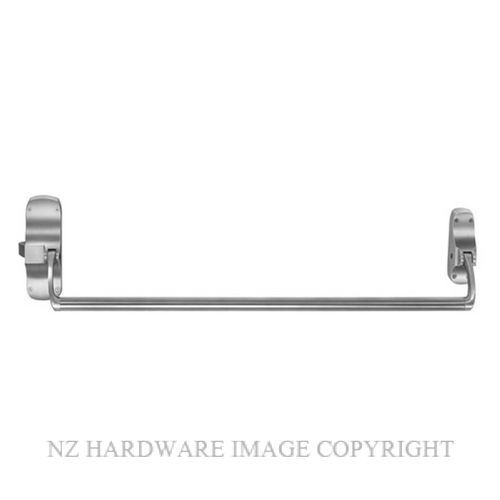

VON DUPRIN 88EO SC PANIC BOLT 11514 SATIN CHROME
 |
10 Year Mechanical Warranty |
| MINIMUM DOOR WIDTH EACH LEAF | 600mm |
| DOOR THICKNESS SURFACE MOUNT | 19mm Minimum |
| DOOR THICKNESS BOLT THROUGH | 44mm to 57mm |
| MINIMUM STILE WIDTH | 71mm |
| CROSS BAR LENGTH | 1067mm |
| DEVICE PROJECTION | 68mm |
| PRODUCT DESCRIPTION |
| The Von Duprin 88 Series is a range of push bar exit devices designed to suit single and double door applications. The 88 Series can be used on aluminium, hollow metal or wood swinging commercial doors. Available as rim and surface mounted vertical rod devices. The 88 Series has an architectural look, differing from the push-pads and has the added advantage of being field sizeable to suit doors as narrow as 600mm. |
| PRODUCT FEATURES |
|
Non-handed • Field sizeable to accommodate a range of door openings • Rim device has latch with 19mm throw and suitable for doors 600mm to 1220mm wide • Vertical rod device has latch with 16mm throw and suitable for minimum door width of 600mm • Optional external trims available for key access • The 10 year warranty provides specifiers and users with assured quality and performance |
| Code | Supplier Part Number | Image | Name | Unit | Application | Function | Finish | Fire Rated | Returns Policy | Privacy Policy | Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VD88EO SC | VDD11514 |
|
VON DUPRIN 88EO SC PANIC BOLT 11514 SATIN CHROME
|
Each | Single Doors | 1 Point Locking | Satin Chrome | Non Fire Rated | 20 Percent Surcharge | 20 Percent Surcharge |
$1,985.94 (exc GST)
|
