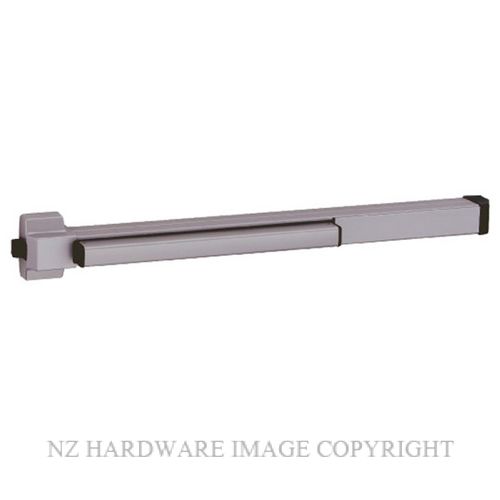

VON DUPRIN 22EO 914MM SL PANIC BOLT SILVER GREY

VON DUPRIN 22EO 914MM SL PANIC BOLT SILVER GREY
 warranty-1.png10 Year Mechanical Warranty

VON DUPRIN 22EO 914MM PANIC BOLT

PRODUCT DESCRIPTION

The Von Duprin 22 Series is a range of push pad exit devices designed to suit single and double door applications. The 22 Series can be used on metal or timber swinging commercial doors. Available as rim and surface mounted vertical rod devices, in 914mm and 1220mm models. The 22 Series is traditionally used in non-public areas such as warehouses, factories and side exits.

Finish - Silver Grey

If you require assistance with your selection, please contact us either by email or phone.

FOR RELATED PRODUCTS REFER BELOW

MINIMUM DOOR WIDTH EACH LEAF673mm Minimum (Based on standard strike and 13mm stop)
DOOR THICKNESS40mm to 57mm
MINIMUM STILE WIDTH

121mm minimum with standard 299 strike

100mm minimum with optional 1606 strike

DEVICE LENGTH841mm
DEVICE PROJECTION95mm
PRODUCT FEATURES
  • Suitable for all types of single doors
  • Can be used in conjunction with a 2227EO surface mounted vertical rod device and 1609 strike for double rebated door applications
  • When 22EO is used in conjunction with 2227EO and 1609 strike on double rebated doors, the minimum stile width is 111mm
  • Field sizeable to accommodate a range of door openings
  • Single point locking device, with a 19mm throw deadlocking latch
  • The hex key dogging allows the latch to be held in a retracted position
  • A dull black 299 strike is furnished with the device
  • Supplied with all fixing hardware and hex dogging key
  • Optional outside trim and alarm kits are available
Code Supplier Part Number Image Name Unit Application Function Finish Fire Rated Returns Policy Privacy Policy Price Quantity
VD22EO 914 VDD11513 VON DUPRIN 22EO 914MM SL PANIC BOLT SILVER GREY
  • Unit:
    Each
  • Application:
    Single Doors
  • Function:
    1 Point Locking
  • Finish:
    Silver Grey
  • Fire Rated:
    Non Fire Rated
  • Returns Policy:
    20 Percent Surcharge
Each Single Doors 1 Point Locking Silver Grey Non Fire Rated 20 Percent Surcharge 20 Percent Surcharge
$833.09 (exc GST)
