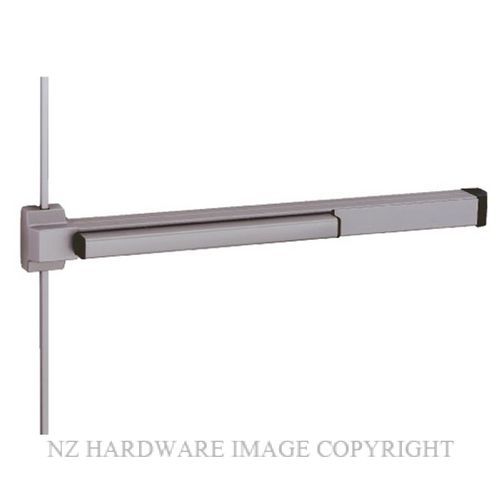

VON DUPRIN 2227 EO F 914MM SL PANIC BOLT FIRE RATED SILVER GREY

	Fire Rated - REFER FIRE DOOR MANUFACTURER FOR SPECIFIC APPROVAL
	10 Year Warranty

DOOR HEIGHT	2134mm (extension rods available - see related products below)
DOOR WIDTH	657 Minimum
DOOR THICKNESS	40mm to 57mm
MINIMUM STILE WIDTH	92mm
DEVICE LENGTH	841mm
DEVICE PROJECTION	95mm

PRODUCT DESCRIPTION

The Von Duprin 22 Series is a range of push pad exit devices designed to suit single and double door applications. The 22 Series can be used on metal or timber swinging commercial doors. Available as rim and surface mounted vertical rod devices, in 914mm and 1220mm models. The 22 Series is traditionally used in non-public areas such as warehouses, factories and side exits.

PRODUCT FEATURES

Suitable for all types of single doors
Can be used in conjunction with another 2227EO-F for double non-rebated door applications
For rebated double door applications the 2227EO-F should be used in conjunction with a 22EO-F rim device and 1609 strike
Fits door stiles as narrow as 92mm
When 2227EO-F is used in conjunction with 22EO-F and 1609 strike on double rebated doors, the minimum stile width is 111mm
Field sizeable to accommodate a range of door openings
Optional extension rods available for doors over 2134mm high
Multi-point locking device, with 16mm throw deadlocking anti-friction top and bottom latch
Supplied with 299F and 304L strikes as standard
Optional outside trim and alarm kits are available

Downloadable Files

Downloads

Code	Supplier Part Number	Image	Name	Unit	Application	Function	Finish	Fire Rated	Returns Policy	Privacy Policy	Price	Quantity
VD2227EOF 914	VDD11535		VON DUPRIN 2227 EO F 914MM SL PANIC BOLT FIRE RATED SILVER GREY Unit: Each Application: Single Doors Function: 2 Point Locking Finish: Silver Grey Fire Rated: Fire Rated Returns Policy: 20 Percent Surcharge	Each	Single Doors	2 Point Locking	Silver Grey	Fire Rated	20 Percent Surcharge	20 Percent Surcharge	$1,708.25 (exc GST)	Quantity:
