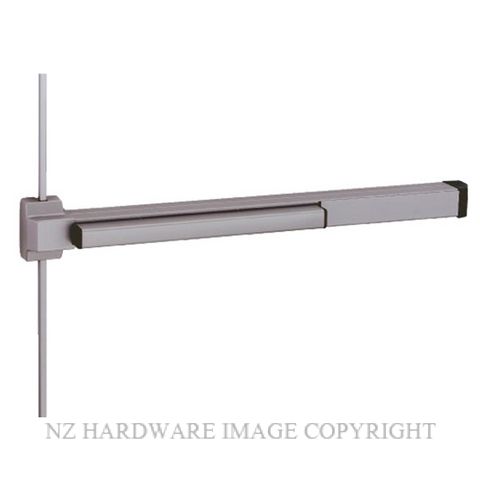

VON DUPRIN 2227EO 1220MM SL PANIC BOLT SILVER GREY

VON DUPRIN 2227EO 1220MM SL PANIC BOLT SILVER GREY
 warranty-1.png 10 Year Mechanical Warranty



DOOR HEIGHT 2134mm (extension rods available - see related products below)
DOOR WIDTH 825mm Minimum
DOOR THICKNESS 40mm to 57mm
MINIMUM STILE WIDTH 92mm
DEVICE LENGTH 1146mm
DEVICE PROJECTION 95mm

PRODUCT DESCRIPTION
The Von Duprin 22 Series is a range of push pad exit devices designed to suit single and double door applications. The 22 Series can be used on metal or timber swinging commercial doors. Available as rim and surface mounted vertical rod devices, in 914mm and 1220mm models. The 22 Series is traditionally used in non-public areas such as warehouses, factories and side exits.

PRODUCT FEATURES
  • Suitable for all types of single doors
  • Can be used in conjunction with another 2227EO for double non-rebated door applications
  • For rebated double door applications the 2227EO should be used in conjunction with a 22EO rim device and 1609 strike
  • Fits door stiles as narrow as 92mm
  • When 2227EO is used in conjunction with 22EO and 1609 strike on double rebated doors, the minimum stile width is 111mm
  • Field sizeable to accommodate a range of door openings
  • Optional extension rods available for door over 2134mm high
  • Multi-point locking device, with 16mm throw deadlocking anti-friction top and bottom latch
  • The hex key dogging allows the latch to be held in a retracted position
  • Suppled with 248L-4, 299 and 304L strikes as standard
  • Optional outside trim and alarm kits are available



Code Supplier Part Number Image Name Unit Application Finish Fire Rated Price Quantity
VD2227EO 1220 VDD11504 VON DUPRIN 2227EO 1220MM SL PANIC BOLT SILVER GREY
  • Unit:
    Each
  • Application:
    Single Doors
  • Finish:
    Silver Grey
  • Fire Rated:
    Non Fire Rated
 Each Single Doors Silver Grey Non Fire Rated
$1,826.06 (exc GST)
