BRITON 378E SILVER PANIC BOLT NON HANDED SILVER GREY

BRITON 378E SILVER PANIC BOLT NON HANDED SILVER GREY
 warranty-1.png 10 Year Mechanical Warranty

BRITON BT378E SG PANIC BOLT

SINGLE RIM PANIC LATCH

PRODUCT DESCRIPTION

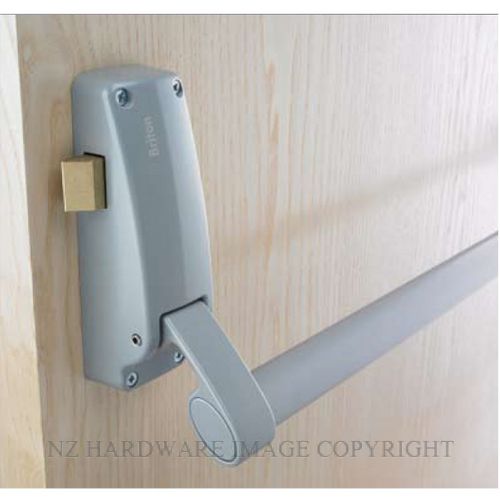

The Briton 376E Series is an economical range of push bar devices designed to suit single and double door applications. The 376E Series can be used on aluminium, hollow metal or wood swinging commercial doors. Available as rim and surface mounted vertical panic bolt devices. Each model in the 376E Series is operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency

FOR RELATED PRODUCTS REFER BELOW
PRODUCT FEATURES
  • Suitable for all types of single doors and the first opening leaf of double doors with rebated meeting stiles
  • Supplied handed but can be reversed on site
  • Optional model available with manual dogging (hold open)
  • Can be used with a rim cylinder fitted to the outside of the door
  • For double rebated door applications the 377E double door set should be used
MINIMUM DOOR WIDTH EACH LEAF 655mm
MAXIMUM DOOR WIDTH EACH LEAF  1300mm
DOOR THICKNESS 35mm to 50mm
MINIMUM STILE WIDTH 78mm
DEVICE LENGTH 1300mm
DEVICE PROJECTION 99mm



Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Application Function Finish Fire Rated Price Quantity
BT378E SG B378E/SE BRITON 378E SILVER PANIC BOLT NON HANDED SILVER GREY
  • Unit:
    Each
  • Application:
    Single Doors
  • Function:
    1 Point Locking
  • Finish:
    Silver Grey
  • Fire Rated:
    Fire Rated
 Each Single Doors 1 Point Locking Silver Grey Fire Rated
$373.63 (exc GST)
